MONO 45W-50W(18V)
Series No:GSPV-45W-50W(156M)36M.O.Q:52pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar charger and Other solar device
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 20years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||
|
Series Number |
GSPV-35W (156M)36 |
GSPV-40W (156M)36 |
GSPV-45W (156M)36 |
GSPV-50W (156M)36 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
|
|
Max power |
35w |
40w |
45w |
50w |
|
|
Power Tolerance |
±3% |
||||
|
Nominal voltage(V) |
18.15 |
18.12 |
18.13 |
18.15 |
|
|
Nominal current(A) |
1.93 |
2.21 |
2.48 |
2.75 |
|
|
Open circuit voltage(V) |
22.11 |
22.03 |
22.12 |
22.15 |
|
|
Short circuit current(A) |
2.10 |
2.35 |
2.74 |
2.93 |
|
|
Size of cell/strips(mm) |
156x36 |
156x39 |
156x45 |
156x52 |
|
|
Number of cells |
36(4x9) |
36(4x9) |
36(4x9) |
36(4x9) |
|
|
Power Of cell |
>4.3w |
>4.53w |
>4.42w |
>4.25w |
|
|
FF(fill factor) % |
75.38 |
77.26 |
74.24 |
77.04 |
|
|
Dimension of solar panel |
670x390x30 |
540x670x30 |
|||
|
Weight of solar panel(kg) |
4.5 |
5.0 |
|||
|

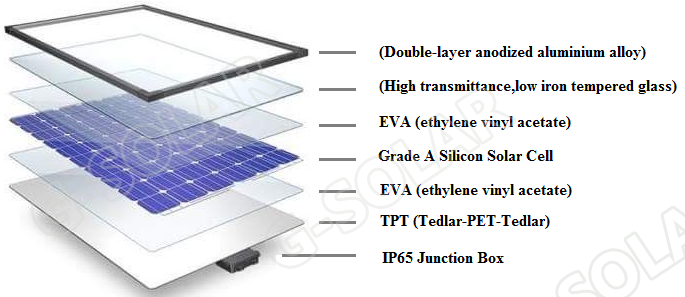

Front Cover |
3.2 mm, High transmittance, low iron tempered glass |
||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||
|
Frame |
Double-layer anodized aluminum alloy |
||||
|
Junction Box/connector |
IP65 |
||||
|
Max. System Voltage |
1000V DC |
||||
|
Operating Temperature |
-40℃～+85℃ |
||||
|
Storage Temperature |
-40℃～+85℃ |
||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||
|
Application Class |
Class A |
||||
|
NOCT |
45℃± 2℃ |
||||
|
Temperature co-efficient |
Current |
+0.049% /℃ |
|||
|
Voltage |
-0.340% /℃ |
||||
|
Power |
-0.430% /℃ |
||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||
Technical Drawing
Our Assemble Line of small size panel
Download:GSPV-45W-50W(156M)36
