Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
★ 2EL tests before/after laminated, 1 Flash test for finished panel

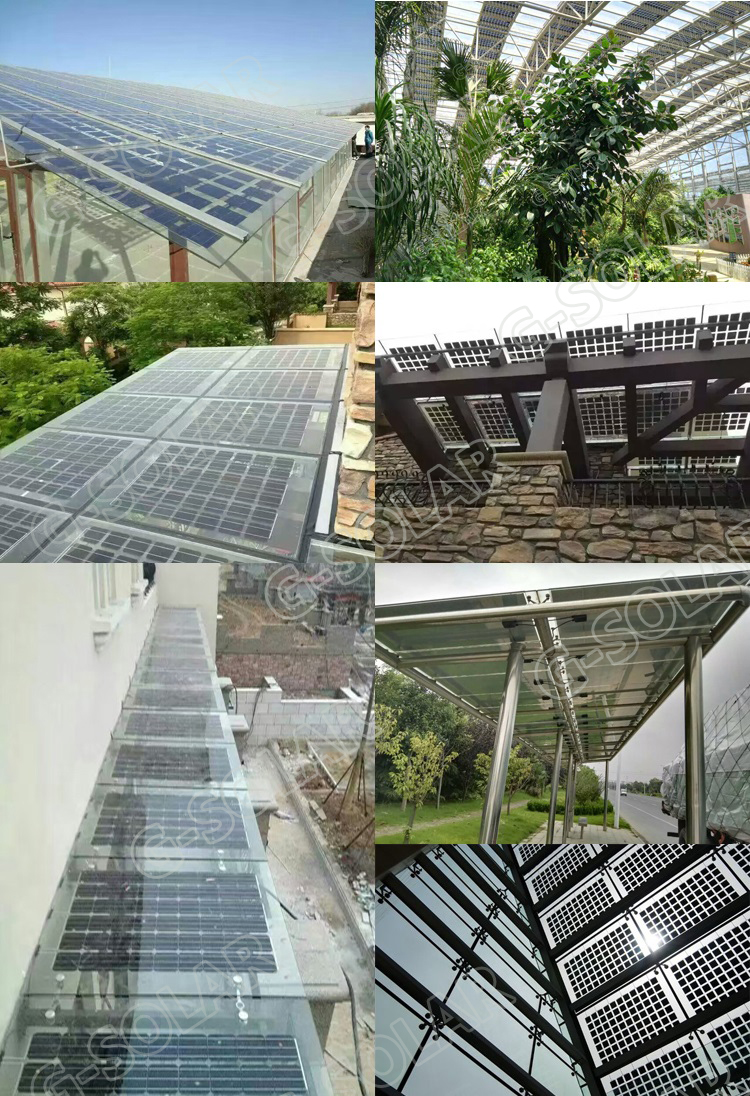

Applications
★ Solar roof system, Farm.
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 20years with 80% output
Series Number
GSBIPV-160W(156M)36
GSBIPV-165W(156M)36
GSBIPV-170W(156M)36
Cell Type
Mono
Max power
160w
165w
170w
Power Tolerance
0~5w
Sun transmittance
40%
Nominal Voltage(V)
18.15
18.21
18.25
Nominal Current(A)
8.82
9.06
9.32
Open circuit voltage(V)
22.38
22.55
22.75
Short circuit current(A)
9.31
9.55
9.81
Size of cell/strip(mm)
156x156
Number of cell/strip
36(4x9)
Power of cell
4.63w
4.70w
4.82w
FF(fill factor)%
76.79
76.61
76.17
NOCT
45℃±2℃
Temperature
Co-efficient
Isc
+0.049% /℃
Voc
-0.340% /℃
Pmpp
-0.430% /℃
STC :Irradiance 1000w/m2, Module temperature25℃,AM=1.5
Solar cell
Monocrystalline solar cell, 6inch
Front Cover
ultra clear low iron wove tempered glass
Back Cover
tempered glass
Encapsulate
EVA(ethylene vinyl acetate),PVB
Junction Box
IP67
Cables / Connectors
MC4 connectors,4mm2x900mmCable
Dimensions(mm)
1658x992x7.4
Weight(kg)
26.5kgs
Packing
50pcs/wooden case
800pcs/40ftcontainer
Maximum System Voltage
1000V DC
Operating Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Maximum Wind Load
2400Pa
Maximum Snow Load
5400Pa
Application Class
Class A
Application
Download:GSBIPV-160W-170W(M)36
