Parameter

Specification

Quantity

Solar Panel

GSPV-50W(156P)36    50W,Poly

1

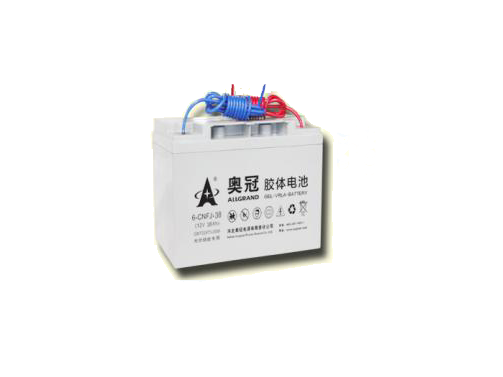

Battery

AOGUAN (6-CNFJ-38),   12V/38Ah GEL

1

Charge Controller

EPEVER( LS1024E), 12V/10A

1

AC charger

AC110V~240V/DC12V,3stepps

1

MP3/Radio

FM Radio,MP3 Player with 3w speaker

1

Power Box

Steel box  and lacquer-coated,30x30x30cm

1

Specification

Quantity

OUPUT

12V DC,5.5X2.1mmDC

5

5V DC,USB charger

2

INPUT

18V DC5.5X2.1mmDC

1

110V~24V AC

1

Load

Specification

Working time

Power Consumption

Quantity

LED BULB

12V,5w

8hours

120wh

3

Radio/MP3

5V,3W

8hours

24wh

1

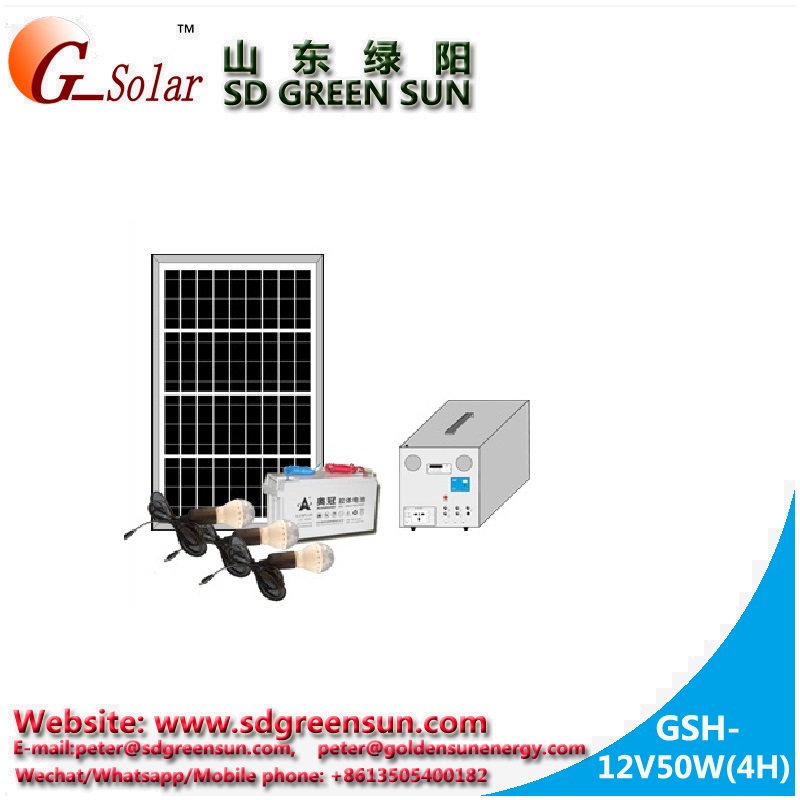

Components And
Accessories

Specification

Quantity

Solar panel

50W,Poly

1

All-in-one Box

Build-in Controller,Radio/MP3,DC connector, AC charger

1

Battery

12V 38Ah

1

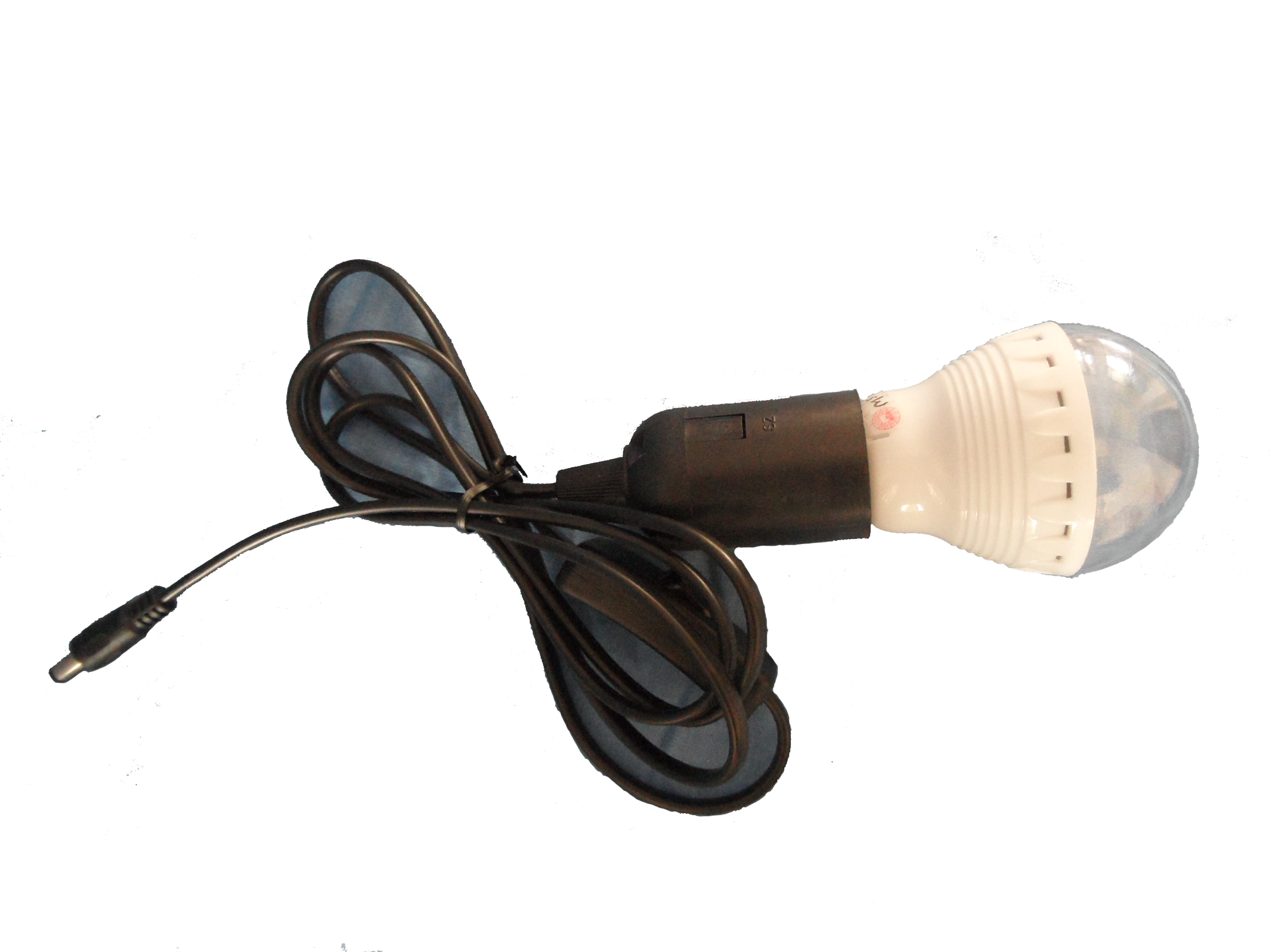

LED BULB

12V,5W,0.5m㎡,150cm,with switch,lamp head

3

AC cable

50cm,local standard,3P

1

Wire of battery

2.5m㎡,200cm

1

Wire of panel

0.75m㎡,300cm,with on/off switch ,5.5x2.1mmDC connector

1

Insulation: 4kwh/m2/day
Power generated per day:160wh
Power consumption per day:144wh
Keep Working days: 2cloudy days
Warranty: 1years for whole set

Grade A quality solar panel
Long work life GEL battery
High bright&long life LED bulb with buid-in IC
Portable Metal All-in-one Box
U support on solar panel ,easy to fix anywhere
