  • Home > Product > SOLAR POWER SYSTEM > Residential System > Stand alone system

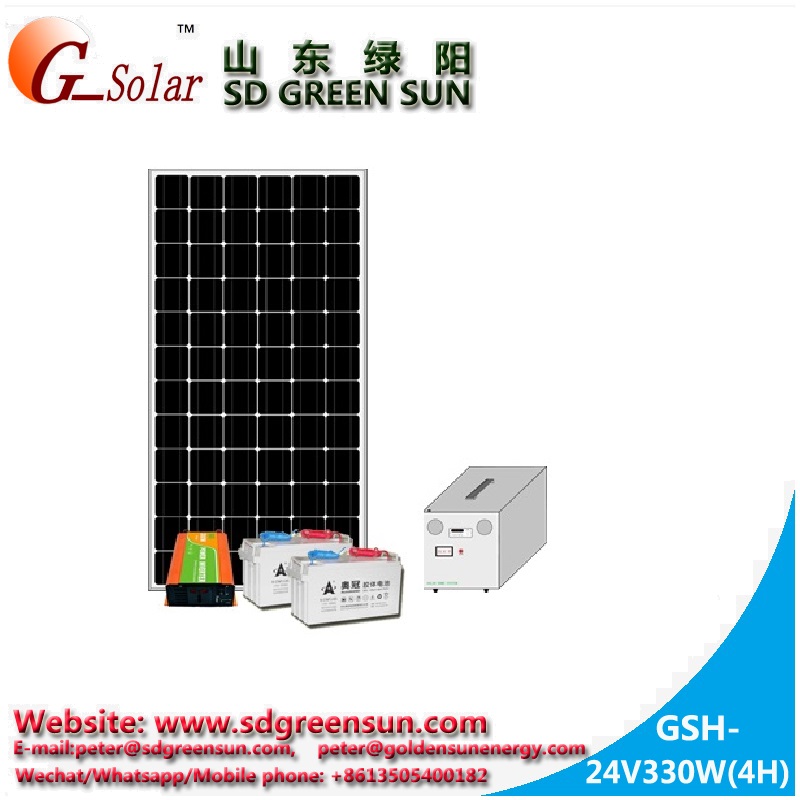

    330W Home System

    Series No:GSH-24V330W(4H)
    M.O.Q:100sets
    Payment:T/T, L/C, Paypal
    Warranty:1years
    Get Quote


    Features



    Specification

    Parameter

    Specification

    Quantity

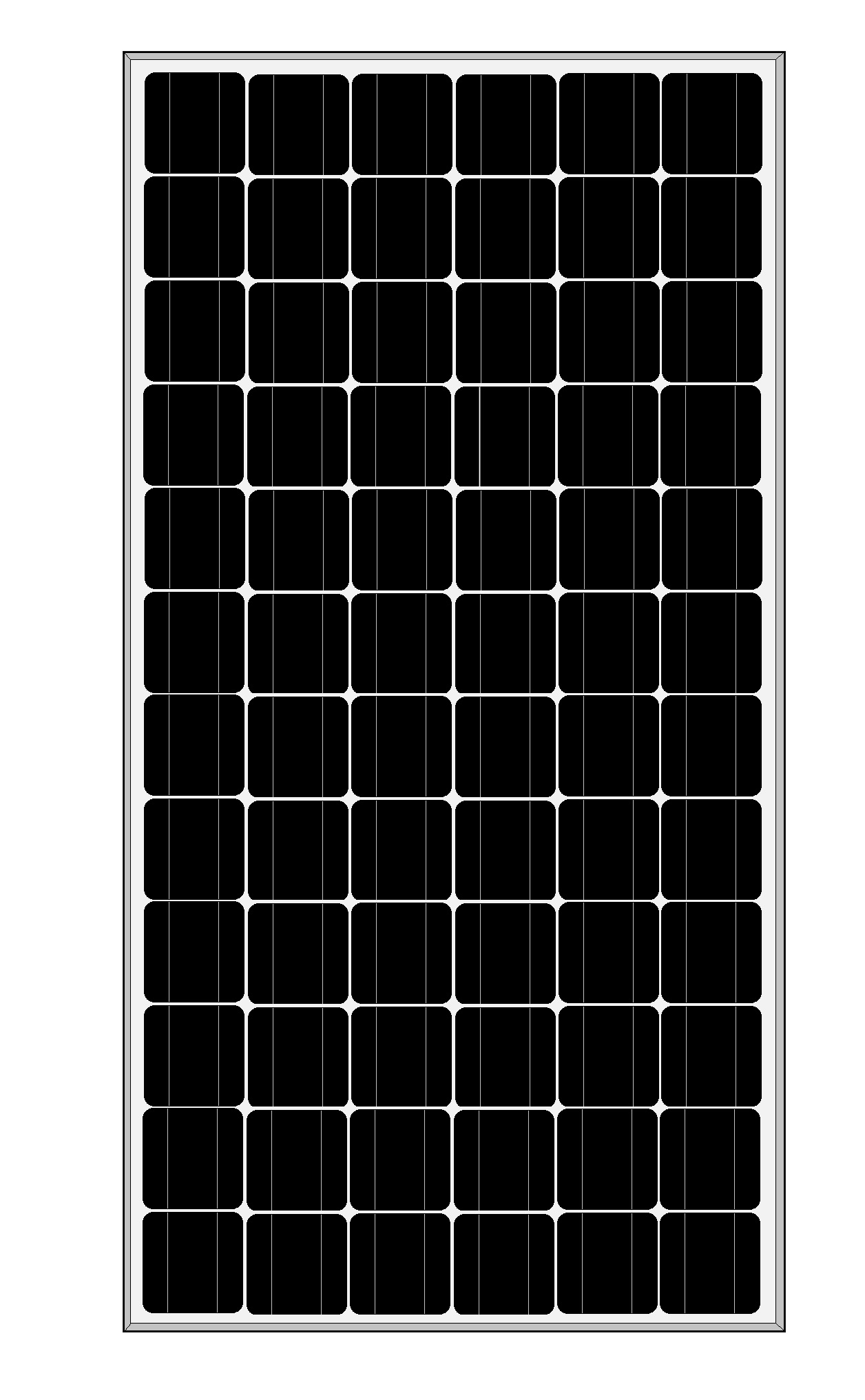

    Solar Panel

    GSPV-330W(156M4)72   ,330W,Mono,1956x992x40mm4.0 mm2,300cm

    1

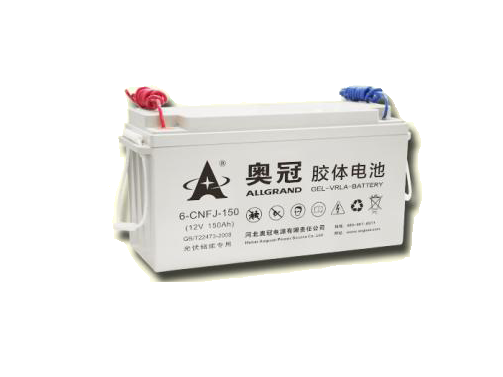

    Battery

    AOGUAN(6-CNFJ-150), 12V 150Ah

    2

    Charge Controller

    EPEVER (LS2024B) 24V20A

    1

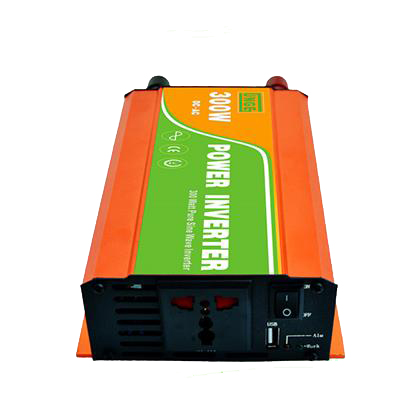

    Inverter

    300W,Pure sine wave  AC110V/220V/240V,50Hz/60Hz

    1

    MP3/Radio

    FM Radio,MP3 Player with 3w speaker

    1

    Power Box

    Steel box  and lacquer-coated,30x30x30cm

    1

    Specification

    Quantity

    OUTPUT

    5V DC,USB port

    2

    110V-240V 50Hz/60Hz, AC

    1

    INPUT

    36V DC

    1

    Load

    Specification

    Working time

    Power Consumption

    Quantity

    LED BULB

    9w

    8hours

    216wh

    3

    Radio/MP3

    3W

    12hours

    36wh

    1

    Ceiling Fan

    18W

    4hours

    72wh

    1

    TV

    60W

    3hours

    180wh

    1

    Refrigerator

    108L

    24hours

    624wh

    1

    Components And
    Accessories

    Specification

    Quantity

    Solar panel

    330W,Mono,1956x992x40mm

    1

    Inverter

    300W Pure Sine wave

    Battery

    12V 150Ah

    2

    All-in-one Box

    Build-in Controller,Radio/MP3,DC connector

    1

    Wire of battery

    4.0 mm2,400cm

    1

    Wire of panel

    4.0 mm2,300cm

    1



    Please send me your detail requirement for a Cutomized System


    Download: GSH24V330WA(4H)
