Parameter

Specification

Quantity

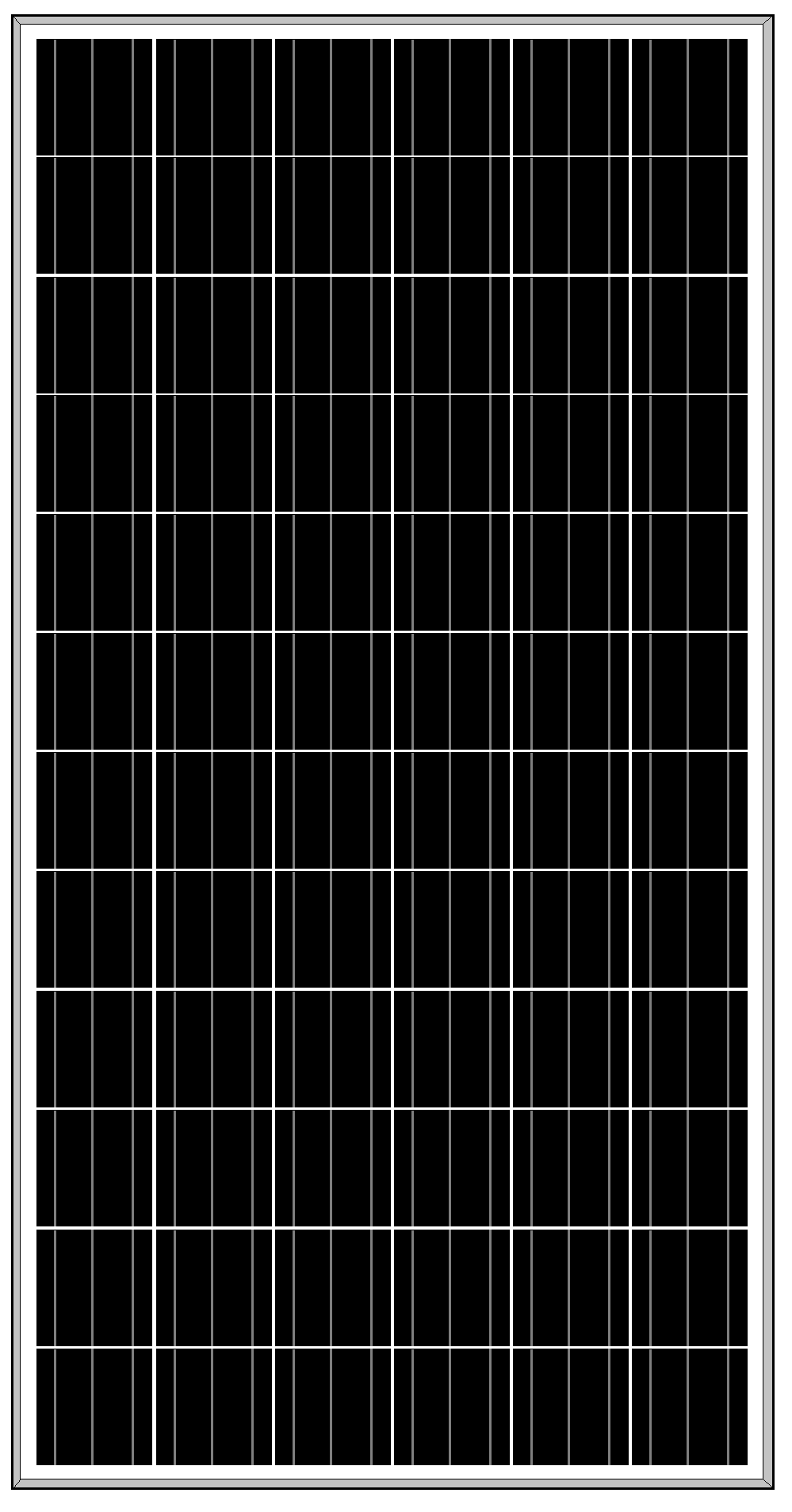

Solar Panel

GSPV-315W(156P)72 ,315W,Poly ,4.0 mm²,300cm

2

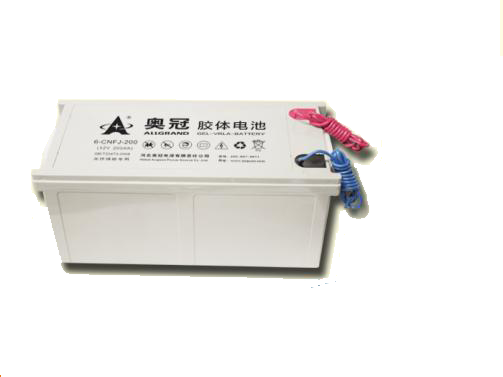

Battery

AOGUAN(6-CNFJ-200 ),12V 200Ah

2

Charge Controller

EPEVER (LS2024B) 24V20A

1

Inverter

600W,Pure sine wave  AC110V/220V/240V,50Hz/60Hz

1

MP3/Radio

FM Radio,MP3 Player with 3w speaker

1

Power Box

Steel box  and lacquer-coated,30x30x30cm

1

Specification

Quantity

OUTPUT

5V DC,USB charger

2

110V-240V 50Hz/60Hz, AC

1

INPUT

36V DC

1

Load

Specification

Working time

Power Consumption

Quantity

LED BULB

12w

8hours

384wh

4

Radio/MP3

3W

12hours

36wh

1

Ceiling Fan

25W

4hours

100wh

1

TV(21")

100W

4hours

400wh

1

TV Receiver

15w

12hours

180wh

1

Refrigerator

108L

24hours

624wh

1

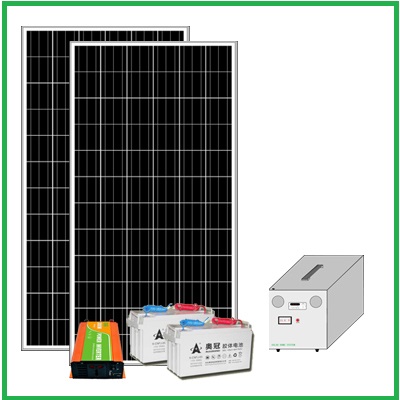

Components And
Accessories

Specification

Quantity

Solar panel

315W,Poly

2

Inverter

600W,Pure Sine wave

1

Battery

12V 200Ah

2

All-in-one Box

Build-in Controller,Radio/MP3,DC connector

1

Wire of battery

4.0 mm²,800cm

1

Wire of panel

4.0 mm²,300cm

1
