  • Home > Product > SOLAR LIGHT > Solar outdoor light > ALL IN ONE

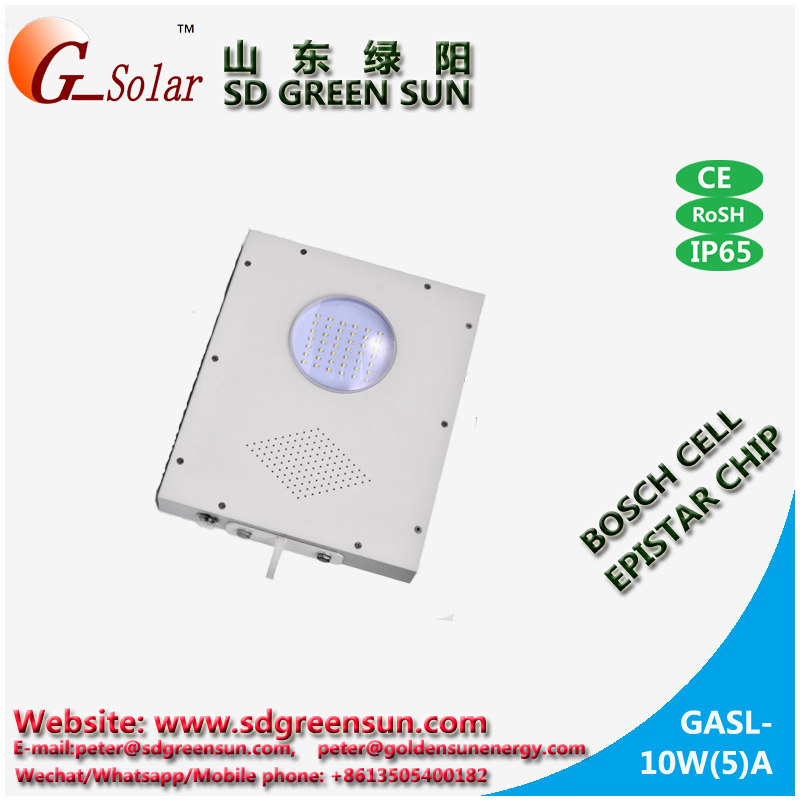

    10W(5)A

    Series No:GASL10W(5)A
    M.O.Q:100sets
    Payment:T/T, L/C, Paypal
    Warranty:5years
    Get Quote

    Brief Introduction

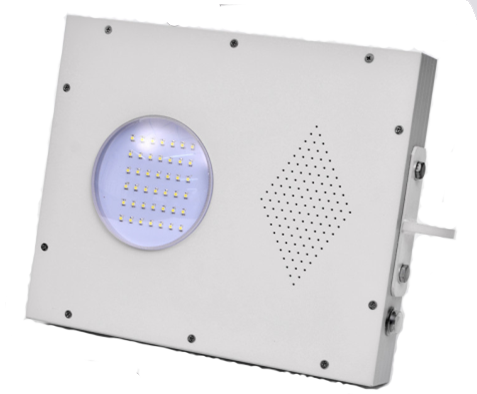

    All in one solar street light is the product integrated design with LED light source, high capacity lithium battery, mono-crystalline

    solar module and automatic controller. It is raised LED light sources which are powered by photovoltaic panels.The photovoltaic

    solar panels charge the rechargeable battery by intelligent controller, which powers the LED light source during the night. In

    addition, the all in one light with a body sensor function, when the body through, the lamp becomes brighter. This product widely

    used in rural road, city streets, gardens, villas and other places.


    Main Advantage

    1. No need of cable installation or special light pole, functional components modular design. Installation, maintenance

    and replacement is convenient and quick .

    2. High efficiency solar panel. High transfer rate, charge full quickly.

    3. Using high capacity lithium ion battery, high energy, long life, light weight, green and environmental protection, do not

    produce any harmful substances.

    4. Using LED lighting source, no diffuse reflection effect, high light efficiency. Coupled with the unique secondary optical design,

    exposures to the wider region, This achieve energy saving again to improve the efficiency of light. And the LED light source

    has a long service life, high luminous efficiency; the advantage of light color uniform, is also a best product of environmental

    protection.

    5. The Shell adopts aluminum, which have a advantage of light weight, corrosion resistance, wear resistance and other

    characteristics. Ensuring product to adapt to the humid and hydrochloric acid environments


    Item No.

    GASL10W(5)A

    Work Mode

    Time controle

    Solar panel

    18V 10W( Cells from Bosch)

    Light Source

    12V 5W(Epistar)

    Battery

    12.8V 4Ah

    Lithium

    Light Angle

    120°

    Ambient temp.

    -20℃~60℃

    Full charge

    6hours

    Working time
    (DOD=0.8)

    Full  power

    12hrs

    Half power

    24hrs

    Post height

    2.5m-3.5m

    Post distance

    7m-9m

    Lamp material

    Aluminium

    Certification

    CE, ROHS, IP65

    Size

    350x290x52mm

    Packing Size

    500x370x140mm/ 1set

    Net/Gross weight

    4kgs / 4.8kgs

    Warranty

    5years

    Packing Configuration

    1pc per carton

    1080sets/20GP, 2250sets/40GP

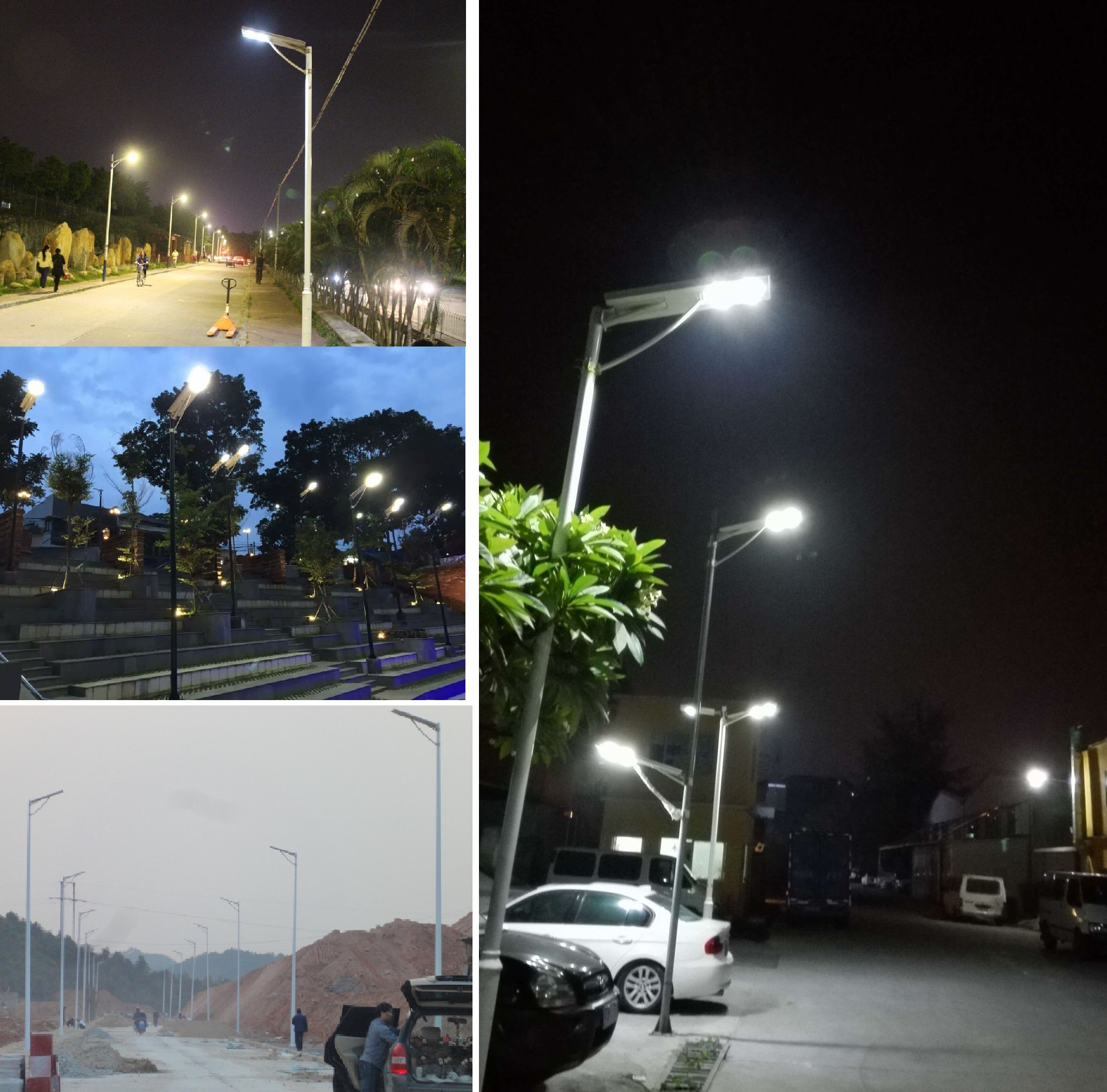

    Application/Project




    Download:GASL10W(5)A
