Solar Charge Bag
BD/BC-268L
Series No:GSH-BD/BC268M.O.Q:10sets
Payment:T/T, L/C, Paypal
Warranty:1years
Features
★ >65mmcyclopentane foam
★ Excellent performance with high efficiency compressor
★ Fast and deep freezing
★ Low noisy design
★ Grade A solar panel with 25years work life
★ Deep recycle GEL maintaince free battery
★ Charger controller with multiply protection functions
★ Several work modes
★ Wide climate range(N/ST/T)
Warranty
★ 1year for battery
★ 5years for compressor
★ 5years for solar charger controller
★ 10years for solar panel
Specification
Model No.
BD/BC-268
Shell Material
Stainless steel
Capacity
268L
Foam vesicant
C5H10/C-pentane
NominalPower
100W
Foam thickness
>65mm
Nominal Voltage
24V DC
Evaporator
Bundy Tube
Power consumption
1200wh/24hours
Applicable Climate
N/T/ST
Refrigerant
R134a
Certification
CE POVC
Temperature range
≤-18℃
Warranty
1year
Temperature
Controlle
LED Display,Digital control
Defrost
Manual
Peak Irriadition
4kwh/day/M2
Keep working
2 cloudy days
Dimension(mm)
1065x543x830
Power consumption
1200wh
Carton Size(mm)
1165x685x875
Power generated
1296wh
N.W/G.W(kg)
48/51
Eff. Of system
0.9
Packing
1set / Carton
DOD of battery
0.7
104sets/ 40HQ
Solar panel
90W,Poly 4pcs
Optional parts
AC/DC adaptor
Charge controller
24V/20A

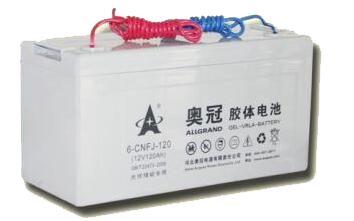

Battery
150Ah, GEL,2pcs
Hybrid solar charge
Refrigerator
BD/BC-268
Optional parts
Working Mode
Application
Download

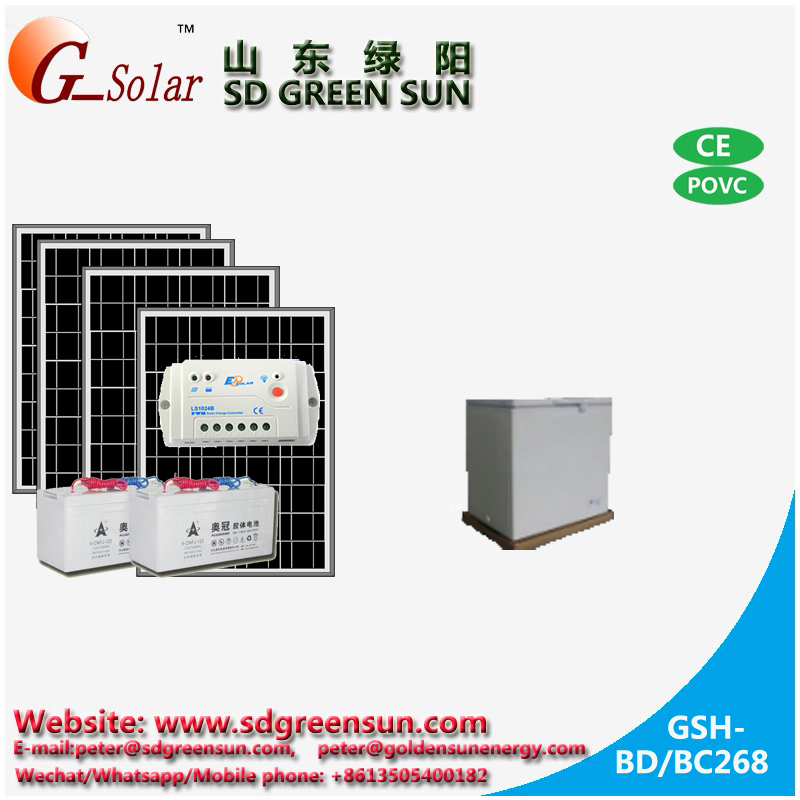

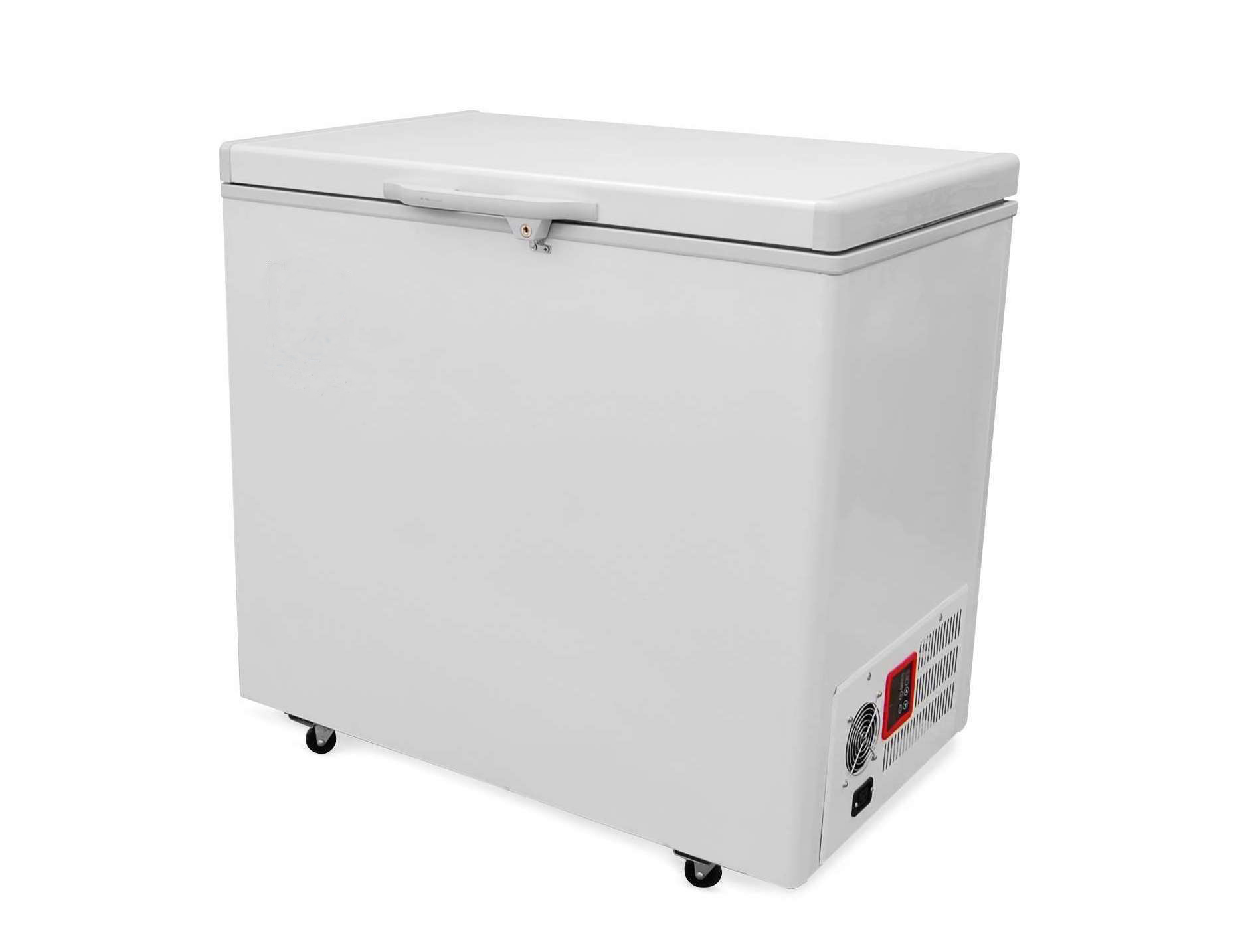

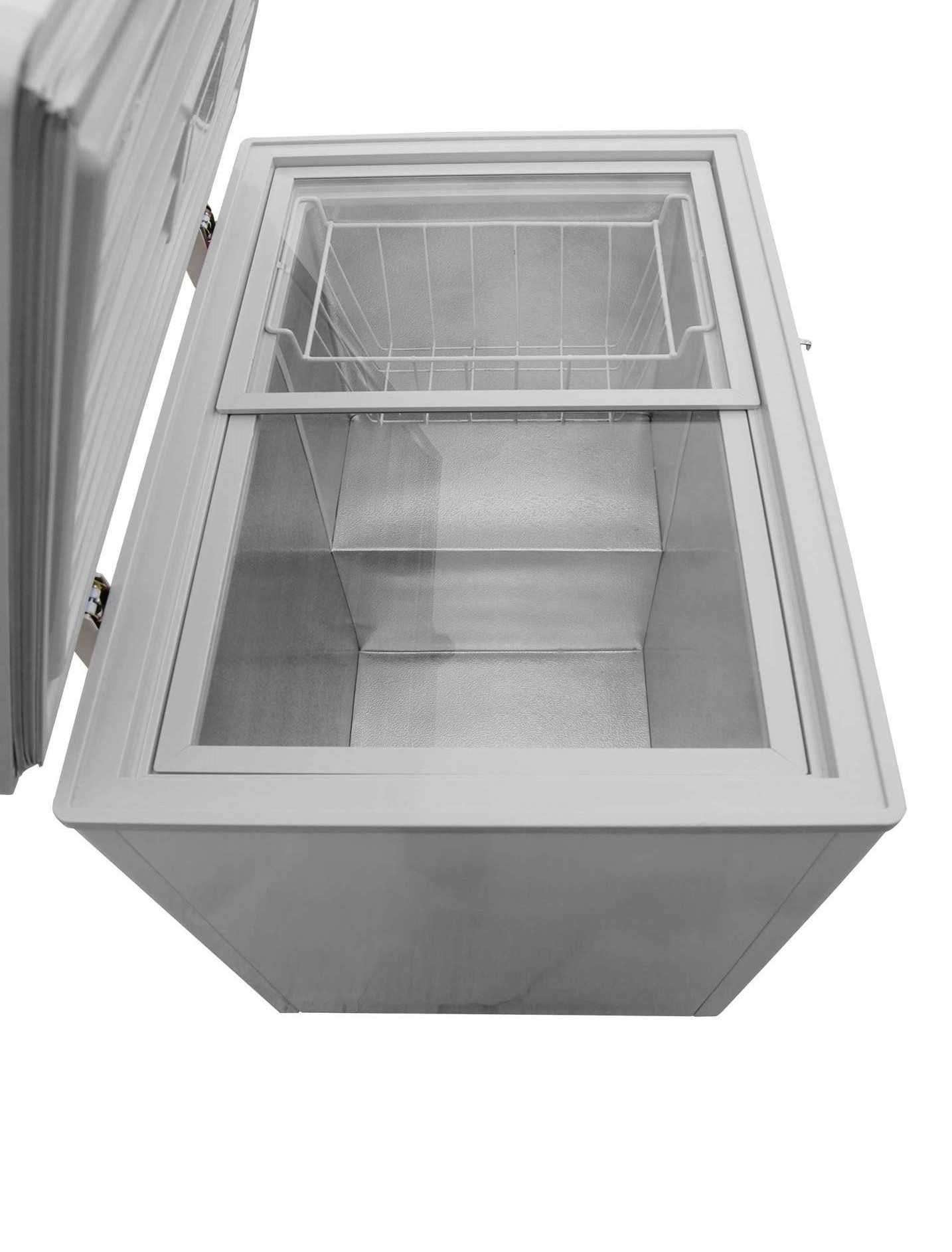

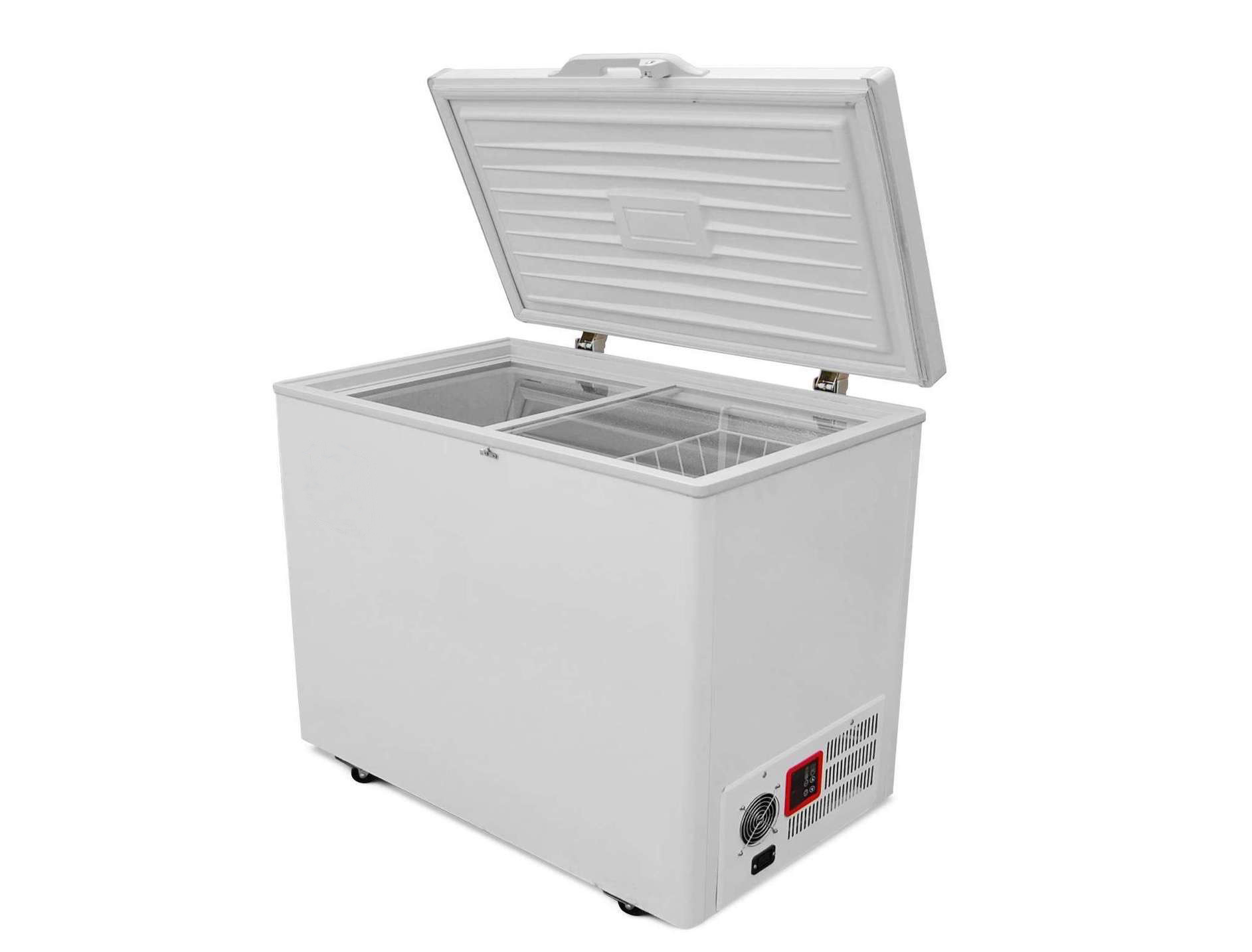

Freezer: BD/BC-268L

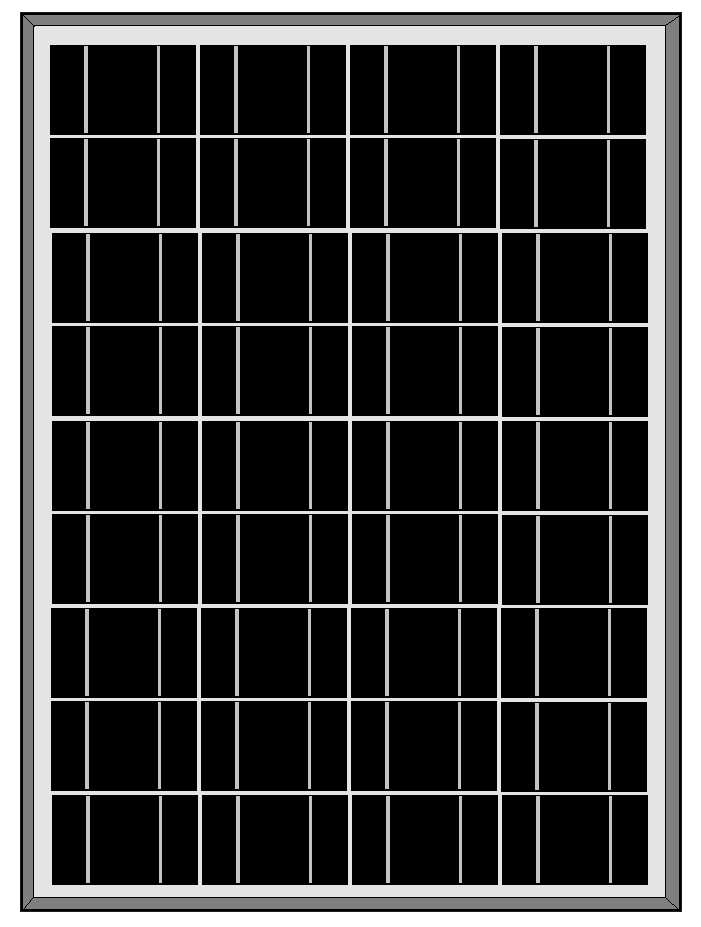

Solar panel: GSPV-90W(156P)36
Charge controller:EPEVER(LS2024B)

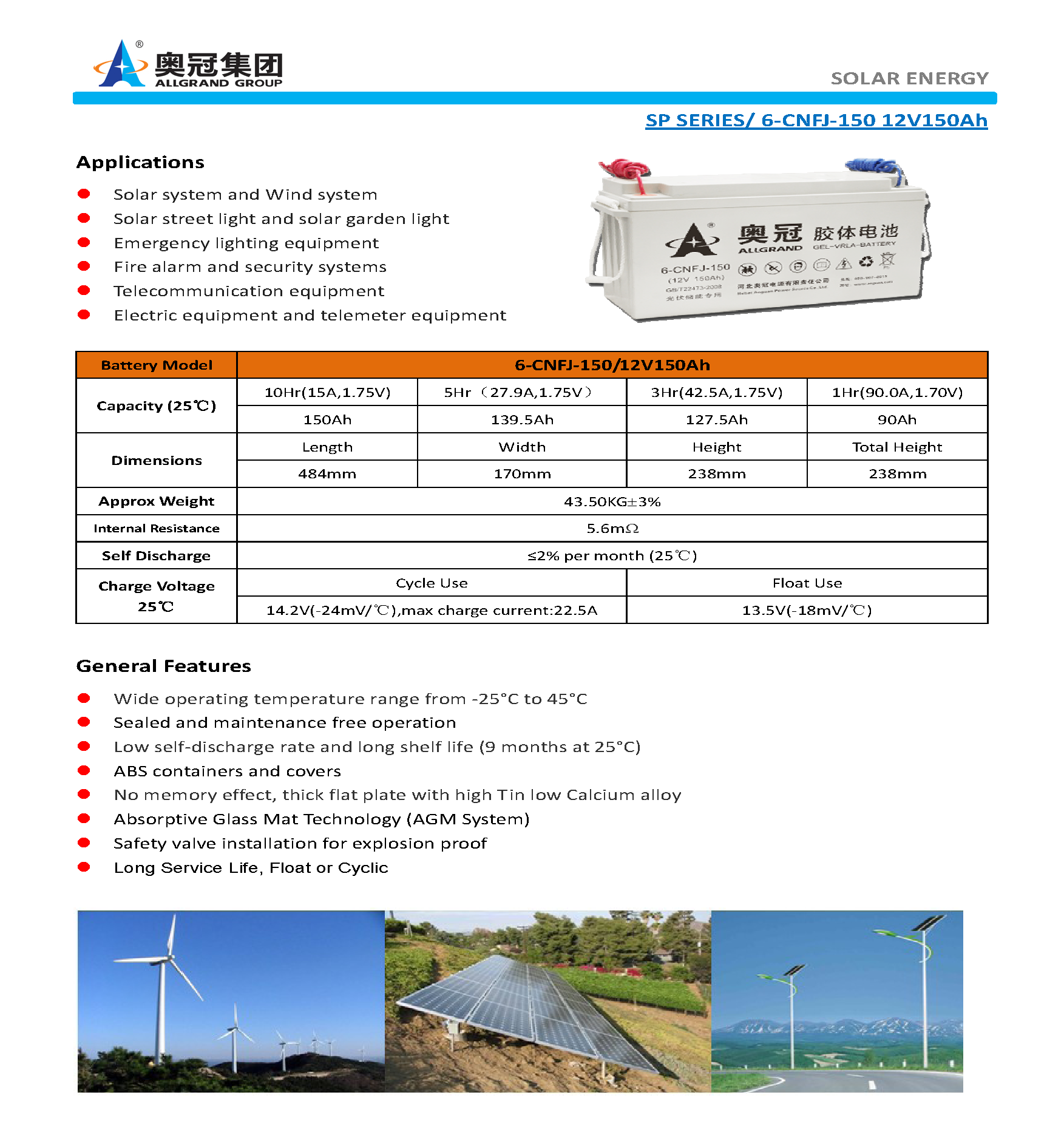

Battery:6-CNFJ-150
