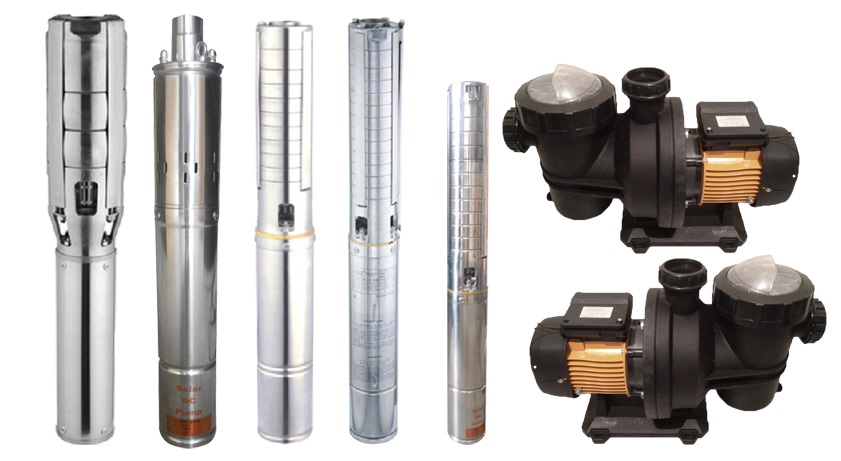

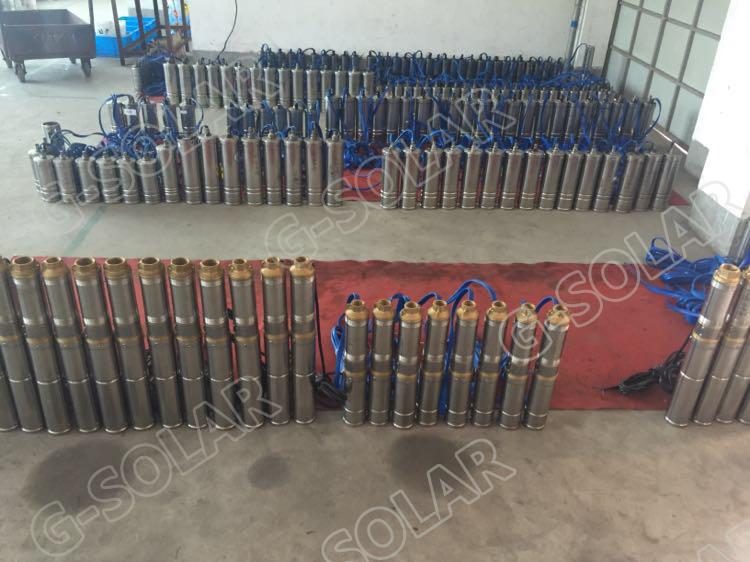

5Inch Submersible pump
Series No:5InchM.O.Q:50sets
Payment:T/T, L/C, Paypal
Warranty:1years
Feature of Pump
Technology: New generation technology, high speed motor
Rotation: 0 to 7200 frequency change, Synchronous constant speed

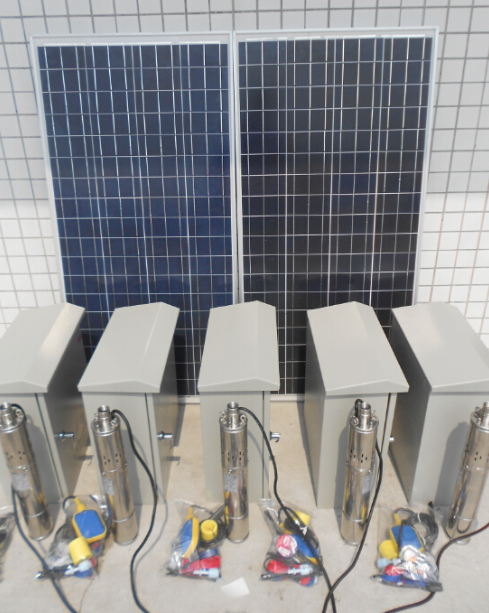

Power source: DC and Solar power
Pump motor: Permanent magnetBrushlessDChigh speed and synchronous motor
Frequency: Synchronous and DC frequency change
Motor efficiency: 83-92%
Unit efficiency: 2%-5% higher than the GB
Functionality: Multifunctional and no limit, automatic protection
Shell material: Q304 stainless steel, better than normal Q201.

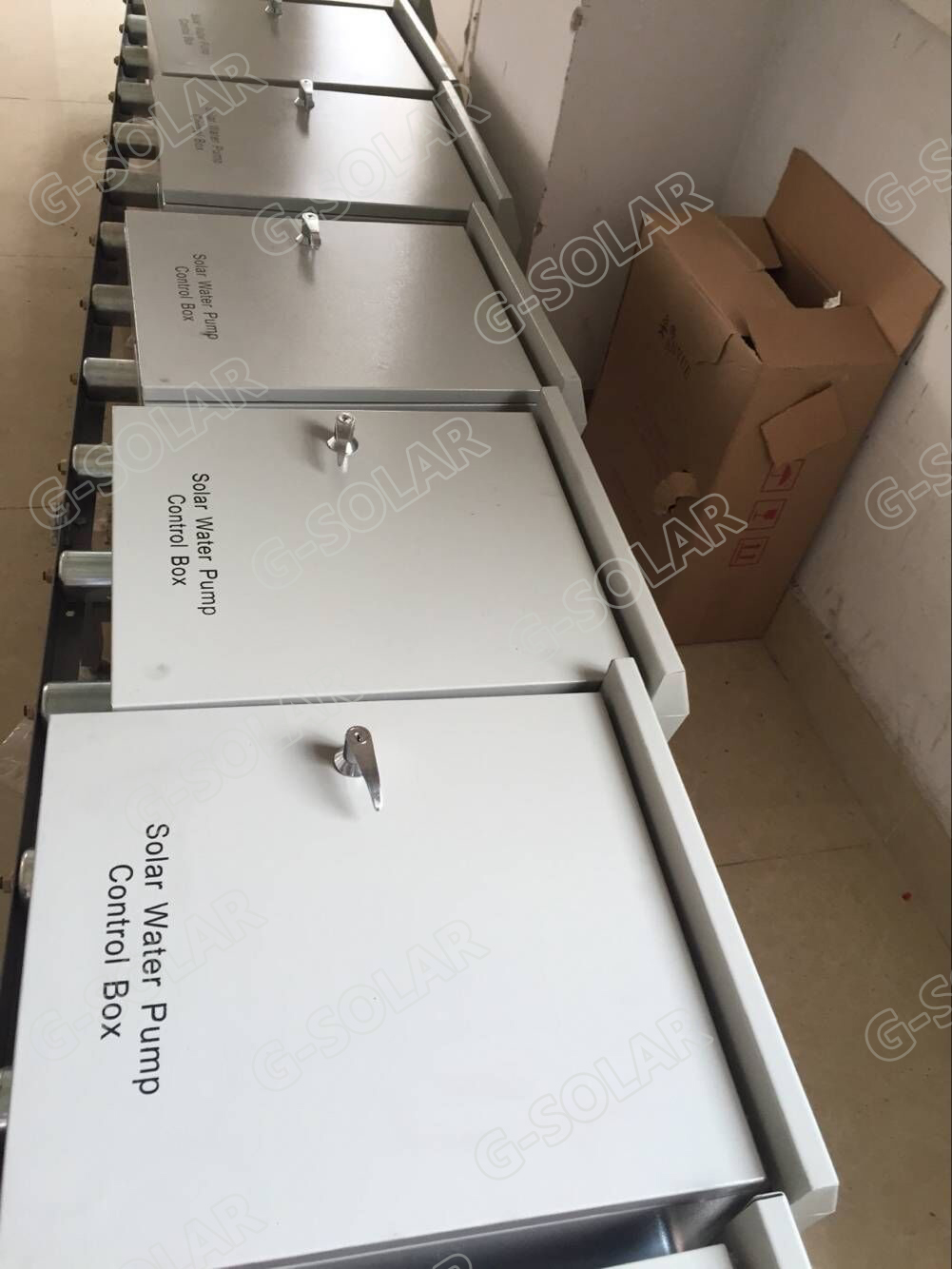

Warranty: 3year for pump, 1year for the pump controller
|
Series No. |
Head(M) |
Flow rate(m3/h) |
Size |
Pump Length |
Pump |
Pump |
Solar panel |
Packing |
|||||||
|
Rated |
Max |
Rated |
Max |
Outer |
Outlet |
Power |
Voltage |
Power |
Voltage |
Quan. |
Volume |
Weight |
|||
|
5SWP-3-30(M) |
3.0 |
7.0 |
30.0 |
46.0 |
125mm (5") |
100mm(4") |
690mm |
Centrifugal |
1300W |
72V DC |
300W |
36V |
6 |
0.88CBM |
201KG |
|
5SWP-15-15(M) |
15.0 |
26.0 |
15.0 |
28.0 |
76mm(3") |
710mm |
1300W |
72V DC |
300W |
36V |
6 |
0.88CBM |
202KG |
||

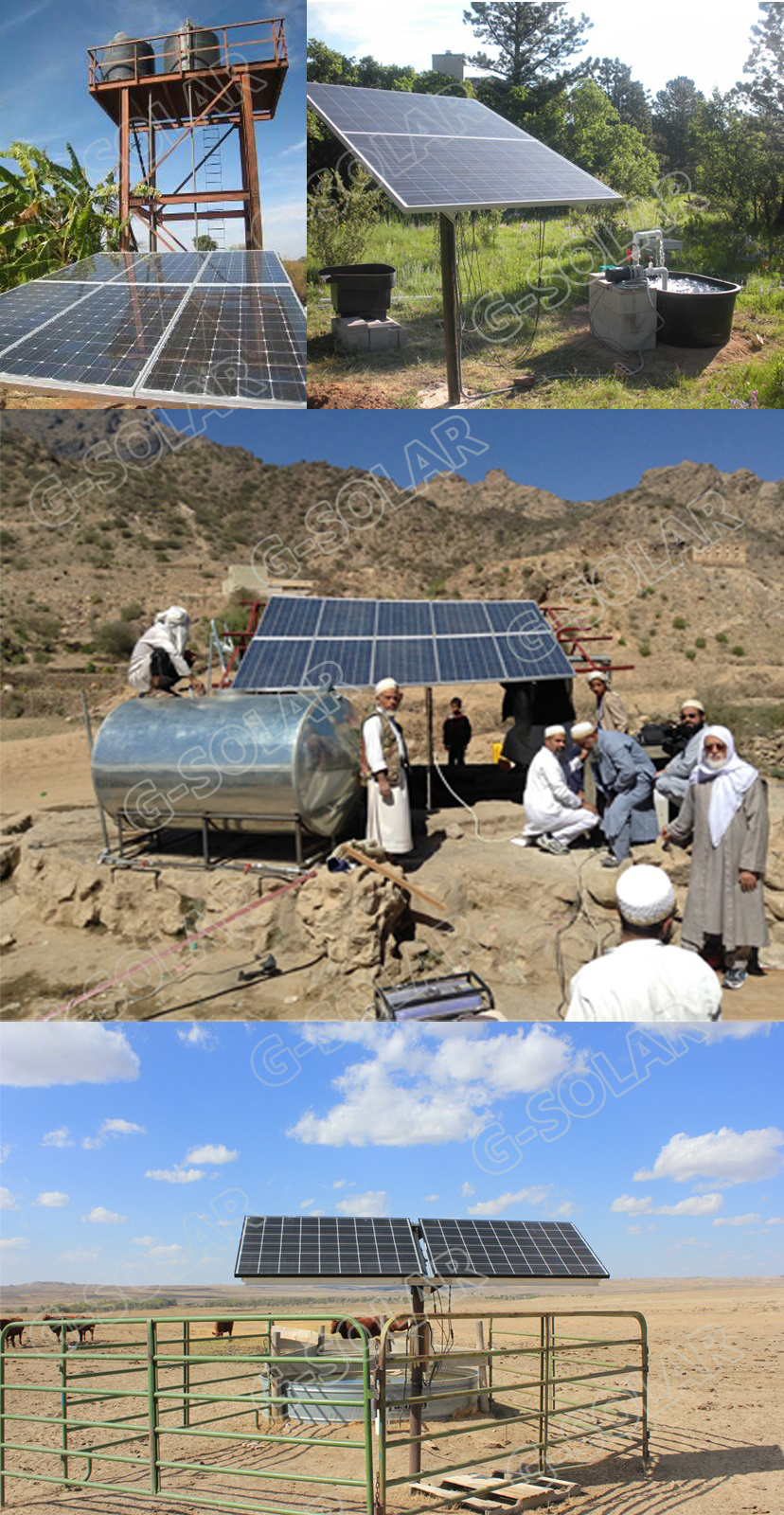

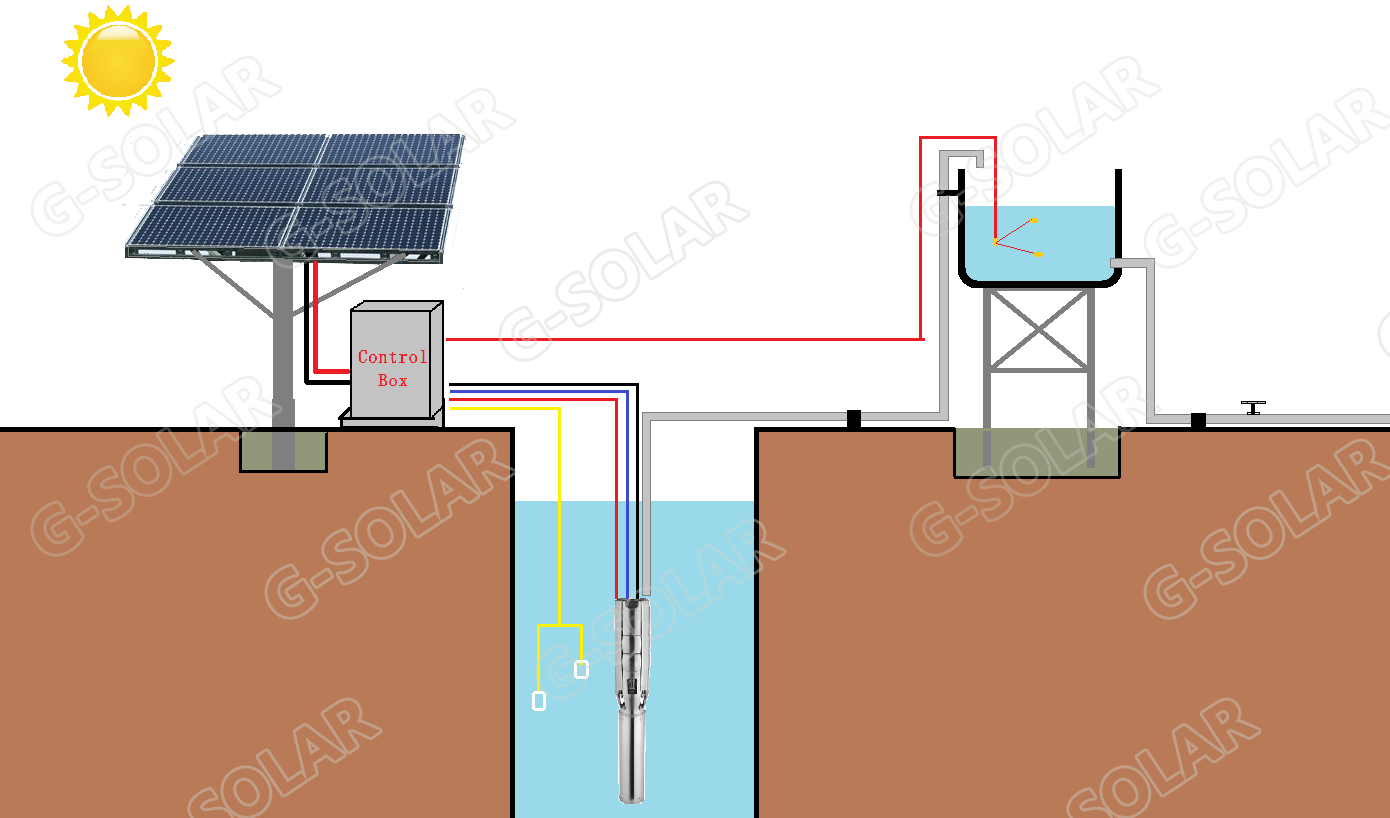

Application:
Download: 5Inch Submersible pump
