Item No.

Item

Description

Quantity

1

Wind Generator

2.6-300W,24V

1set

2

Solar Panel

50W,18V Poly

2pc

3

Battery

12V,100Ah  GEL

2pcs

4

Controller/Inverter

24V DC/220V AC, 300W

1set

Input

24V DC

Output

AC 220V±8%,  50±2Hz

Packing

Plywood case

Warranty

Wind generator

2years

Solar Panel

10years

Controller/Inverter

1year

GELBattery

1year

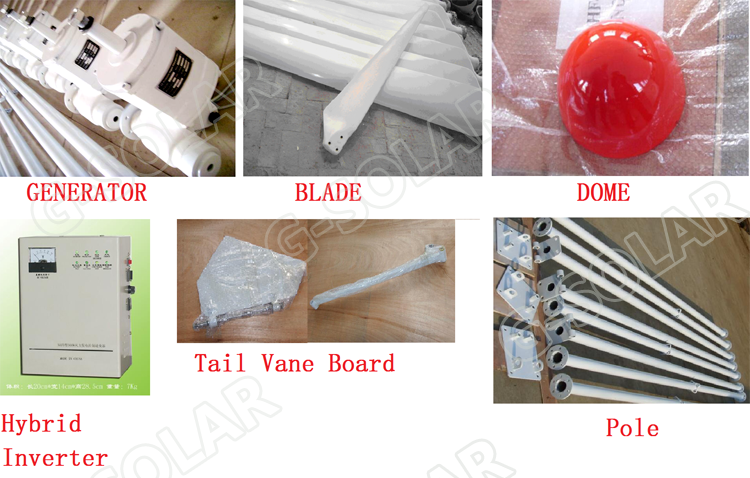

Generator

Rated Power

300W

Max Power

450W

Rated Rotor Speed

400(r/m)

Rated Wind Speed

8(m/s)

Voltage Output

12/24V DC

Start Wind Speed

3(m/s)

Work Wind Speed

3-25(m/s)

Security Wind Speed

40(m/s)

Shell Material

Pressure Cast Iron

Blade

Material

FRP Lay-up by hand

Number

3pcs

Diameter

2.6M

Dome

Material

FRP Lay-up by hand

Number

1pc

Tail Vane

Board

Material

Q235 Steel

Surface Treatment

painting and anticorrosion treatment

Accessories

Base, Wire , Wire Tighting tool, Anchors of base

Anchors of Wire, Nut, Washer, Bolt

Cables

Φ2.5mm 12M

Guy Wire

Tower

Pole Height

6M

Diameter of Tower

60mm

Flange Size

125x125x8mm

Sections of Tower

2

Material

Q235 Steel

Wind/Solar

Hybrid

Controller/

Inverter

Rated power of wind

Turbine

300W

Power of solar panel

100W

Rated power output

300W

Voltage output

AC 210~240(±8%)

Frequency

50/60Hz±2Hz

Voltage of battery

24V

Working Mode

Continuous

Function

Charge and Invert

Working Temperature

-10~40℃

Humidity

≤80%

Fuse

30A

Stop working Voltage

≤18V

Size(cm)

20x14x28.5

Solar Panel

50W,18V poly solar panel

Battery

12V 100Ah GEL battery
