SOLAR PUMP SYSTEM
REFRIGERATOR/FREEZER
70x30mm,4.5V
Series No:GSPV-MINIM.O.Q:1000pcs
Payment:T/T, L/C, Paypal
Warranty:1year
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance Epoxy-resin or PET with FR4 Backboard
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Advanced seal material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar charger ,and Other solar device
Warranty
★ 1 year limited warranty on material and workmanship
Max power
0.6w (±10%)
Max power Voltage
4.5V
Max power Current
50mA
Open Circuit Voltage
5.3V
Short Circuit Current
60mA
Electrical data under STC: AM1.5 Irradiance 1000W/M2 25℃
Test/Checking Condition
Light source: Halogen lamp
Light intensity: 38000Lux.
Size of Cutted cell
26mm x 6.3mm
Quantity of Cutted cell
9pcs, linked in series
Cell Type
Silicon solar cell
Front Cover material
Epoxy-resin
PET
ETFE

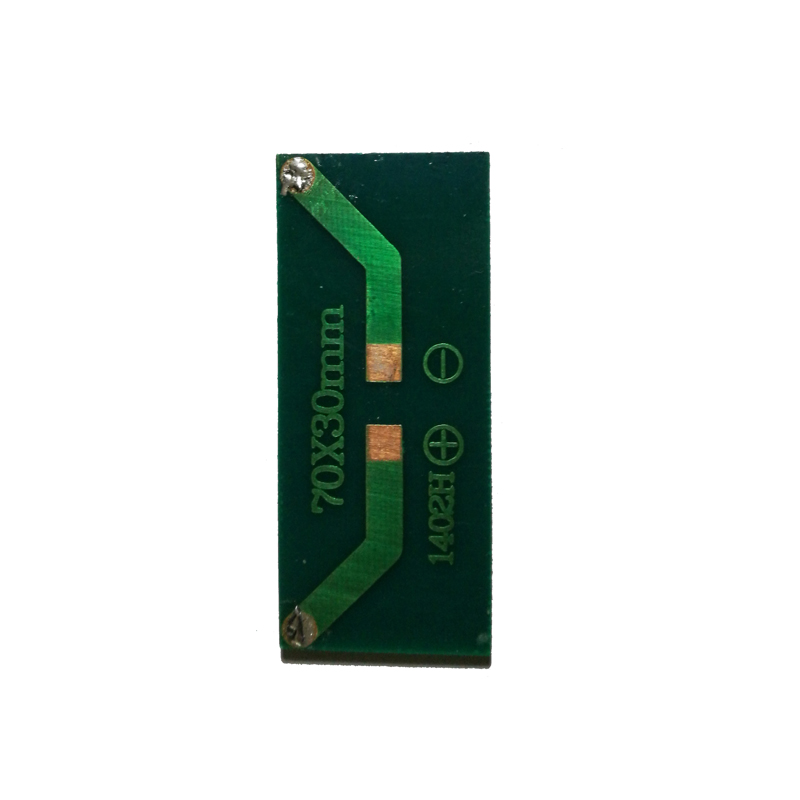

Back board
Single printed FR4
Ribbon cover
Black tape(optional)

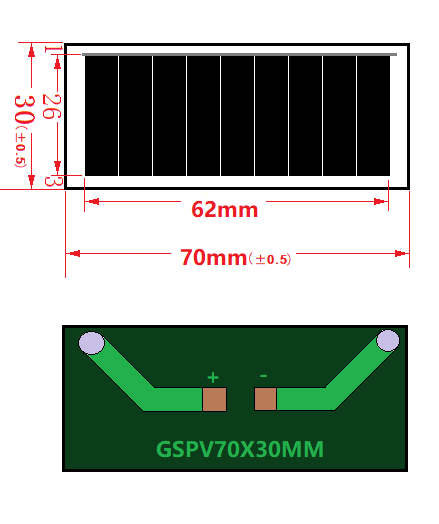

Size of panel
70mm x 30mm(±0.5)
Thickness
2.5mm(±0.5)
2.0mm(±0.5)
2.0mm(±0.5)
Net weight
8g
7g
7g
Working life
1~2years
2~3years
2~3years
Warranty
1year
Packing Details
1500pcs/carton
Carton size: 42cm x 21cm x 27cm
Net weight: 12kgs
Gross weight: 12.5kgs
Remarks: For Other size and voltage, Please send your requirements to us.
