Solar Power
SOLAR PUMP SYSTEM
REFRIGERATOR/FREEZER
61x61mm 4V
Series No:GSPV-MINIM.O.Q:1000pcs
Payment:T/T, L/C, Paypal
Warranty:1year
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance Epoxy-resin or PET with FR4 Backboard
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Advanced seal material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar charger ,and Other solar device
Warranty
★ 1 year limited warranty on material and workmanship
|
Max power |
0.48w (±10%) |
|||
|
Max power Voltage |
4.0V |
|||
|
Max power Current |
120mA |
|||
|
Open Circuit Voltage |
5.3V |
|||
|
Short Circuit Current |
130mA |
|||
|
Electrical data under STC: AM1.5 Irradiance 1000W/M2 25℃ |
||||
|
Test/Checking Condition |
Light source: Halogen lamp Light intensity: 38000Lux. |
|||
|
Size of Cutted cell |
52mm x 6mm |
|||
|
Quantity of Cutted cell |
8pcs, linked in series |
|||
|
Type of cell |
Silicon solar cell |
|||
|
Front Cover material |
Epoxy-resin |
PET |
ETFE |
|
|
Back board |

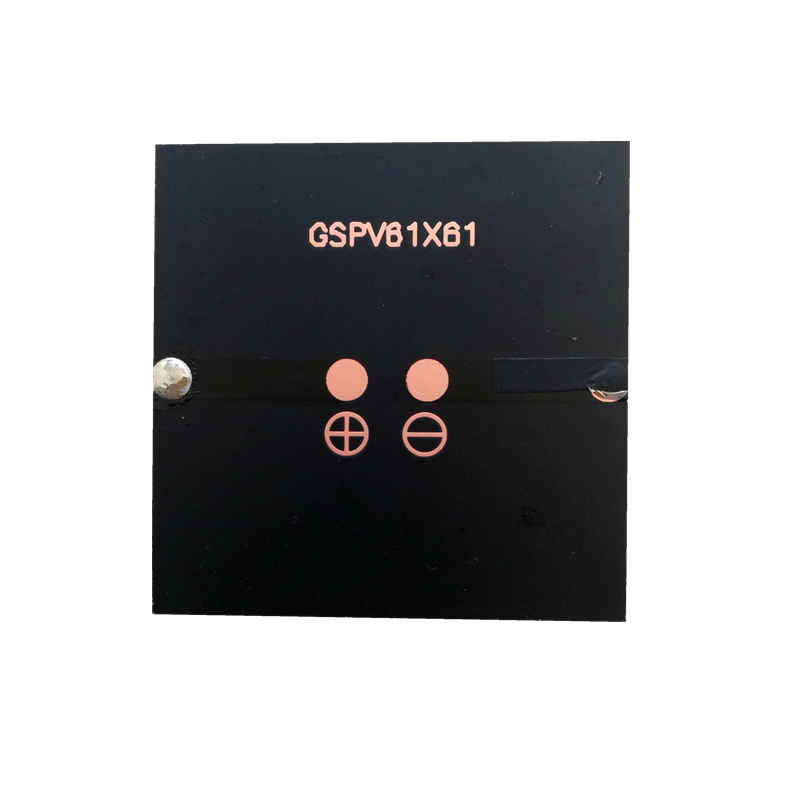

Single printed FR4 |
|||
|
Ribbon cover |
Black tape(optional) |
|||
|

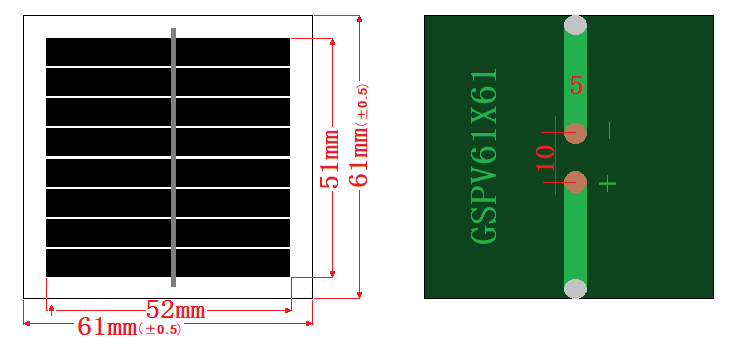

Size of panel |
61mm x 61mm(±0.5) |
|||
|
Thickness |
2.5mm(±0.5) |
2.0mm(±0.5) |
2.0mm(±0.5) |
|
|
Net weight |
17g |
14g |
14g |
|
|
Work Life |
1~2years |
2~3years |
2~3years |
|
|
Warranty |
1year |
|||
|
Packing Details |
800pcs/carton Carton size: 42cm x 21cm x 27cm Net weight: 14.0kgs Gross weight: 15.0kgs |
|||
Remarks: For Other size and voltage, Please send your requirements to us.
