MONO 130W-140W(18V)
Series No:GSPV-130W-140W(156M)36M.O.Q:52pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar charger and Other solar device
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 20years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
||||||
|
Series Number |
GSPV-120W (156M)36 |
GSPV-125W (156M)36 |
GSPV-130W (156M)36 |
GSPV-135W (156M)36 |
GSPV-140W (156M)36 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
Mono |
|
|
Max power |
120w |
125w |
130w |
135w |
140w |
|
|
Power Tolerance |
0~5w |
|||||
|
Nominal voltage(V) |
18.16 |
18.12 |
18.15 |
18.17 |
18.23 |
|
|
Nominal current(A) |
6.61 |
6.90 |
7.16 |
7.43 |
7.68 |
|
|
Open circuit voltage(V) |
22.13 |
22.01 |
22.05 |
22.13 |
22.15 |
|
|
Short circuit current(A) |
7.27 |
7.58 |
8.01 |
8.13 |
8.35 |
|
|
Size of cell/strips(mm) |
156x115 |
156x120 |
156x125 |
156x130 |
156x135 |
|
|
Number of cells |
36(4x9) |
36(4x9) |
||||
|
Efficiency Of cell |
>4.75w |
>4.75w |
>4.75w |
>4.75w |
>4.75w |
|
|
FF(fill factor) % |
74.58 |
74.92 |
73.6 |
75.03 |
75.16 |
|
|
Dimension of solar panel |
1160x670x35 |
1300x670x35 |
||||
|
Weight of solar panel(kg) |
10.0 |
11.0 |
||||
|

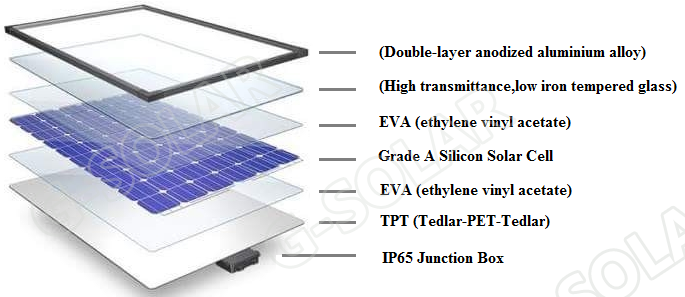

Front Cover |
3.2 mm, High transmittance, low iron tempered glass |
|||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
|||||
|
Encapsulate |
EVA (ethylene vinyl acetate) |
|||||
|
Frame |
Double-layer anodized aluminum alloy |
|||||
|
Junction Box/connector |
IP65/ MC4 connectors,4mm2 x900mmCable |
|||||
|
Max. System Voltage |
1000V DC |
|||||
|
Operating Temperature |
-40℃～+85℃ |
|||||
|
Storage Temperature |
-40℃～+85℃ |
|||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
|||||
|
Application Class |
Class A |
|||||
|
NOCT |
48℃± 2℃ |
|||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
||||
|
Voc |
-0.340% /℃ |
|||||
|
Pmmp |
-0.430% /℃ |
|||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
||||||
Our Assemble Line of small panel
DOWNLOAD: GSPV-130W-140W(156M)36
