MONO 145W-170W(18V)
Series No:GSPV-145W-170W(156M)36M.O.Q:52pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar charger and Other solar device
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 20years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||||
|
Series Number |
GSPV-145W (156M)36 |
GSPV-150W (156M)36 |
GSPV-155W (156M)36 |
GSPV-160W (156M)36 |
GSPV-165W (156M)36 |
GSPV-170W (156M)36 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
|
|
Max power |
145w |
150w |
155w |
160w |
165w |
170w |
|
|
Power Tolerance |
0~5w |
||||||
|
Nominal voltage(V) |
18.03 |
18.05 |
18.13 |
18.15 |
18.21 |
18.25 |
|
|
Nominal current(A) |
8.04 |
8.31 |
8.56 |
8.82 |
9.06 |
9.32 |
|
|
Open circuit voltage(V) |
22.15 |
22.35 |
22.41 |
22.38 |
22.55 |
22.75 |
|
|
Short circuit current(A) |
8.78 |
8.95 |
9.10 |
9.31 |
9.55 |
9.81 |
|
|
Size of cell/strips(mm) |
156x156 |
||||||
|
Number of cells |
36(4x9) |
||||||
|
Power Of cell |
>4.11w |
>4.25w |
>4.39w |
>4.53w |
>4.67w |
>4.82w |
|
|
FF(fill factor) % |
74.55 |
74.98 |
76.00 |
76.79 |
76.61 |
76.17 |
|
|
Dimension of solar panel |
1470x680x35 |
||||||
|
Weight of solar panel(kg) |
13.5 |
||||||
|

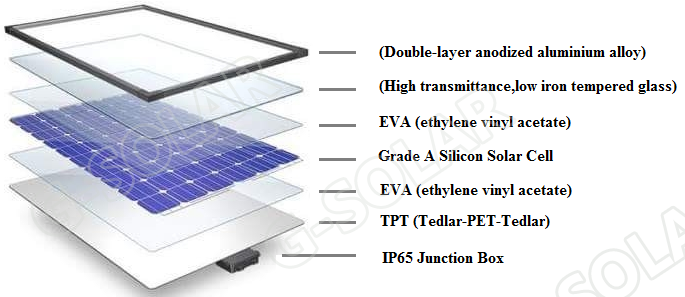

Front Cover |
3.2 mm High transmittance, low iron tempered glass |
||||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||||
|
Frame |
Double-layer anodized aluminum alloy |
||||||
|
Junction Box/connector |
IP65, MC4 connectors,4mm2x900mmCable |
||||||
|
Max. System Voltage |
1000V DC |
||||||
|
Operating Temperature |
-40℃～+85℃ |
||||||
|
Storage Temperature |
-40℃～+85℃ |
||||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||||
|
Application Class |
Class A |
||||||
|
NOCT |
48℃± 2℃ |
||||||
|
Temperature co-efficient |
Power |
+0.049% /℃ |
|||||
|
Voltage |
-0.340% /℃ |
||||||
|
current |
-0.430% /℃ |
||||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||||
