POLY 125W-135W(18V)
Series No:GSPV-125W-135W(156P)36M.O.Q:52pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar charger and Other solar device
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 20years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||||
|
Series Number |
GSPV-110W (156P)36 |
GSPV-115W (156P)36 |
GSPV-120W (156P)36 |
GSPV-125W (156P)36 |
GSPV-130W (156P)36 |
GSPV-135W (156P)36 |
|
|
Cell Type |
Poly |
Poly |
Poly |
Poly |
Poly |
Poly |
|
|
Max power |
110w |
115w |
120w |
125w |
130w |
135w |
|
|
Power Tolerance |
±3% |
||||||
|
Nominal voltage(V) |
18.03 |
18.13 |
18.15 |
18.07 |
18.14 |
18.12 |
|
|
Nominal current(A) |
6.10 |
6.34 |
6.61 |
6.92 |
7.17 |
7.45 |
|
|
Voc(V) |
21.93 |
22.03 |
21.85 |
22.05 |
22.08 |
22.05 |
|
|
Isc(A) |
6.76 |
7.03 |
7.18 |
7.58 |
7.75 |
8.05 |
|
|
Size of cell/strips(mm) |
156x120 |
156x135 |
|||||
|
Number of cells |
36(4x9) |
36(4x9) |
|||||
|
Power Of cell |
>4.05w |
>4.24w |
>4.42w |
>4.10w |
>4.26w |
>4.42w |
|
|
FF(fill factor) % |
74.20 |
74.26 |
76.49 |
74.79 |
75.97 |
76.06 |
|
|
Dimension of panel |
1200x670x35 |
1320x670x35 |
|||||
|
Weight of panel(kg) |
12.0 |
12.5 |
|||||
|

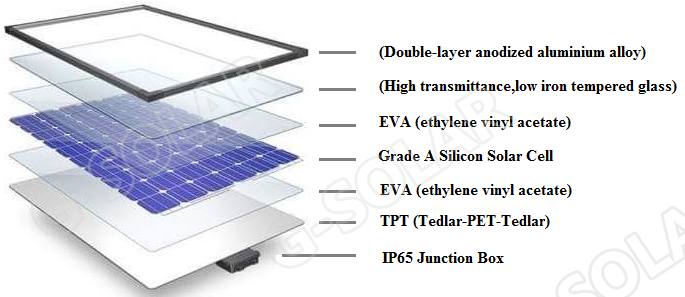

Front Cover |
3.2 mm, High transmittance, low iron tempered glass |
||||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||||
|
Frame |
Double-layer anodized Aluminum alloy |
||||||
|
Junction Box/connector |
IP65/ MC4 connectors,4mm2 x900mmCable |
||||||
|
Max. System Voltage |
1000V DC |
||||||
|
Operating Temperature |
-40℃～+85℃ |
||||||
|
Storage Temperature |
-40℃～+85℃ |
||||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||||
|
Application Class |
Class A |
||||||
|
NOCT |
48℃± 2℃ |
||||||
|
Temperature co-efficient |
Power |
+0.049% /℃ |
|||||
|
Voltage |
-0.340% /℃ |
||||||
|
current |
-0.430% /℃ |
||||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||||
Our Assemble Line of small solar panel
DOWNLOAD: GSPV-125W-135W(156P)36
