MONO 200W-225W(24V)
Series No:GSPV-200W-225W(156M)48M.O.Q:26pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar lights, Solar power system and Other solar device
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||||
|
Series Number |
GSPV-200W (156M)48 |
GSPV-205W (156M)48 |
GSPV-210W (156M)48 |
GSPV-215W (156M)48 |
GSPV-220W (156M)48 |
GSPV-225W (156M)48 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
|
|
Max power |
200w |
205w |
210w |
215w |
220w |
225w |
|
|
Power Tolerance |
0~5w |
||||||
|
Nominal voltage(V) |
23.95 |
24.13 |
24.31 |
24.25 |
24.28 |
24.27 |
|
|
Nominal current(A) |
8.35 |
8.49 |
8.64 |
8.87 |
9.06 |
9.27 |
|
|
Open circuit voltage(V) |
29.01 |
29.14 |
29.23 |
29.35 |
29.38 |
29.25 |
|
|
Short circuit current(A) |
9.08 |
9.32 |
9.46 |
9.63 |
9.78 |
9.93 |
|
|
Size of cell/strips(mm) |
156x156 |
||||||
|
Number of cells |
48(6x8) |
||||||
|
Power Of cell |
>4.25w |
>4.35w |
>4.46w |
>4.57w |
>4.67w |
>4.78w |
|
|
FF(fill factor) % |
75.95 |
75.48 |
76.00 |
76.07 |
76.56 |
77.47 |
|
|
Dimension of solar panel |
1320x990x40 |
||||||
|
Weight of solar panel(kg) |
16.5 |
||||||
|
Front Cover |
3.2 mm, High transmittance, low iron tempered glass |
||||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||||
|
Frame |
Double-layer anodized aluminum alloy |
||||||
|
Junction Box/connector |
IP65/ MC4 connectors,4mm2 x900mmcable |
||||||
|
Max. System Voltage |
1000V DC |
||||||
|
Operating Temperature |
-40℃～+85℃ |
||||||
|
Storage Temperature |
-40℃～+85℃ |
||||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||||
|
Application Class |
Class A |
||||||
|
NOCT |
48℃± 2℃ |
||||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
|||||
|
Voc |
-0.340% /℃ |
||||||
|
Pmpp |
-0.430% /℃ |
||||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||||

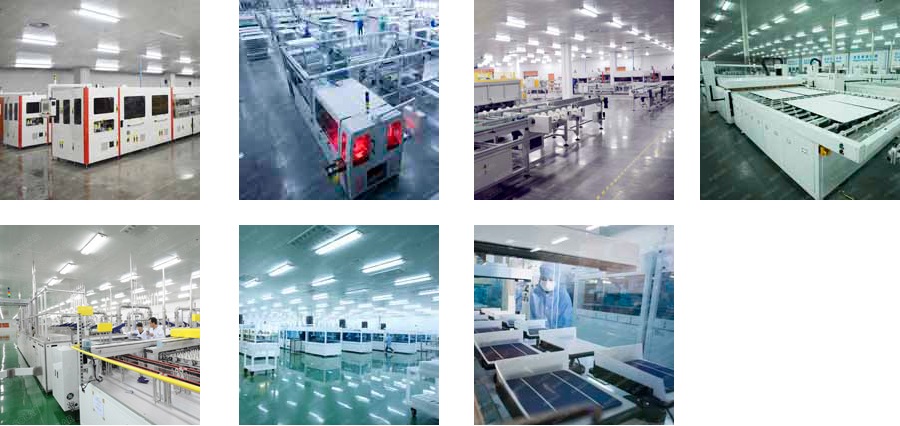

Our Assemble Line
DOWNLOAD: GSPV-200W-225W(156M)48
