MONO 220W-255W(27V)
Series No:GSPV-220W-255W(156M)54M.O.Q:26pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar home system, Solar power plant and Other Solar system
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||||||
|
Series Number |
GSPV-220W (156M)54 |
GSPV-225W (156M)54 |
GSPV-230W (156M)54 |
GSPV-235W (156M)54 |
GSPV-240W (156M)54 |
GSPV-245W (156M)54 |
GSPV-250W (156M)54 |
GSPV-255W (156M)54 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
|
|
Max power |
220w |
225w |
230w |
235w |
240w |
245w |
250w |
255w |
|
|
Power Tolerance |
0~5w |
||||||||
|
Nominal voltage(V) |
27.41 |
27.64 |
27.93 |
28.35 |
28.18 |
28.15 |
28.13 |
28.16 |
|
|
Nominal current(A) |
8.03 |
8.14 |
8.23 |
8.29 |
8.52 |
8.70 |
8.89 |
9.06 |
|
|
Open circuit voltage(V) |
33.71 |
33.79 |
34.08 |
34.32 |
34.17 |
34.29 |
34.25 |
34.17 |
|
|
Short circuit current(A) |
8.47 |
8.65 |
8.79 |
8.84 |
9.07 |
9.25 |
9.34 |
9.53 |
|
|
Size of cell/strips(mm) |
156x156 |
||||||||
|
Number of cells |
54(6x9) |
||||||||
|
Power Of cell |
>4.15w |
>4.25w |
>4.34w |
>4.44w |
>4.53w |
>4.63w |
>4.72w |
>4.82w |
|
|
FF(fill factor) % |
77 |
77 |
76.7 |
77.46 |
77.47 |
77.24 |
78.15 |
78.31 |
|
|
Dimension(mm) |
1480x990x40 |
||||||||
|
Weight(kg) |
17.5 |
||||||||
|
Front Cover |
3.2 mm, High transmittance, low iron tempered glass |
||||||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||||||
|
Frame |
Double-layer anodized aluminum alloy |
||||||||
|
Junction Box/connector |
IP65/ MC4 connectors,4.0mm2x900mmcable |
||||||||
|
Max. System Voltage |
1000V DC |
||||||||
|
Operating Temperature |
-40℃～+85℃ |
||||||||
|
Storage Temperature |
-40℃～+85℃ |
||||||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||||||
|
Application Class |
Class A |
||||||||
|
NOCT |
48℃± 2℃ |
||||||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
|||||||
|
Voc |
-0.340% /℃ |
||||||||
|
Pmpp |
-0.430% /℃ |
||||||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||||||

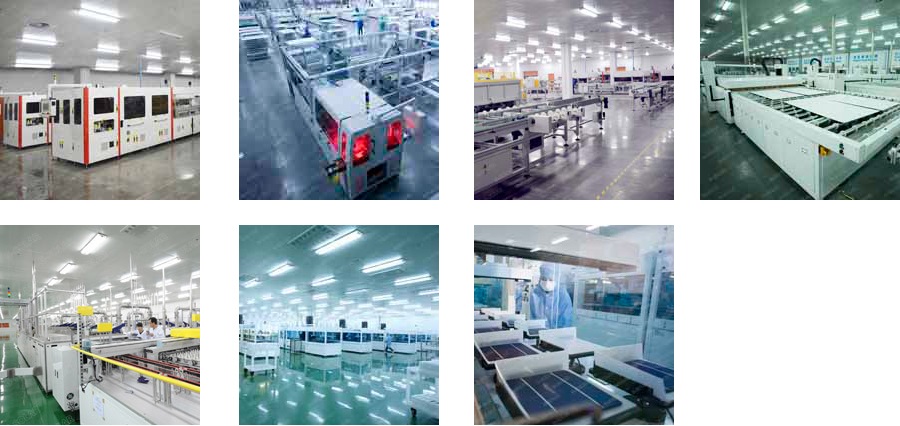

Our Assemble Line
DOWNLOAD: GSPV-220W-255W(156M)54
