Solar Charge Bag
POLY 255W-270W(30V)
Series No:GSPV-260W-270W(156P)60M.O.Q:26pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar home system, Solar power plant and Other Solar system
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||
|
Series Number |
GSPV-255W (156P)60 |
GSPV-260W (156P)60 |
GSPV-265W (156P)60 |
GSPV-270W (156P)60 |
|
|
Cell Type |
Poly |
Poly |
Poly |
Poly |
|
|
Max power(0~5w) |
255w |
260w |
265w |
270w |
|
|
Nominal voltage(V) |
30.5 |
30.7 |
31.2 |
31.5 |
|
|
Nominal current(A) |
8.35 |
8.47 |
8.51 |
8.58 |
|
|
Open circuit voltage(V) |
37.6 |
37.9 |
38.0 |
38.3 |
|
|
Short circuit current(A) |
8.9 |
8.99 |
9.09 |
9.17 |
|
|
Size of cell/strips(mm) |
156.7x156.7 |
||||
|
Number of cells |
60(6x10) |
||||
|
Power Of cell |
>4.5w |
>4.58w |
>4.67w |
>4.75w |
|
|
FF(fill factor) % |
76.9 |
77.0 |
77.1 |
77.3 |
|
|
Dimension |
1640x992x40 |
||||
|
Weight (kg) |
19.0 |
||||
|
Front Cover |
3.2 mm , High transmittance, low iron tempered glass |
||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||
|
Frame |
Double-layer anodized aluminum alloy |
||||
|
Junction Box/connector |
IP65/ MC4 connectors,4.0mm2x900mmcable |
||||
|
Max. System Voltage |
1000V DC |
||||
|
Operating Temperature |
-40℃～+85℃ |
||||
|
Storage Temperature |
-40℃～+85℃ |
||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||
|
Application Class |
Class A |
||||
|
NOCT |
48℃± 2℃ |
||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
|||
|
Voc |
-0.317% /℃ |
||||
|
Pmpp |
-0.430% /℃ |
||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||

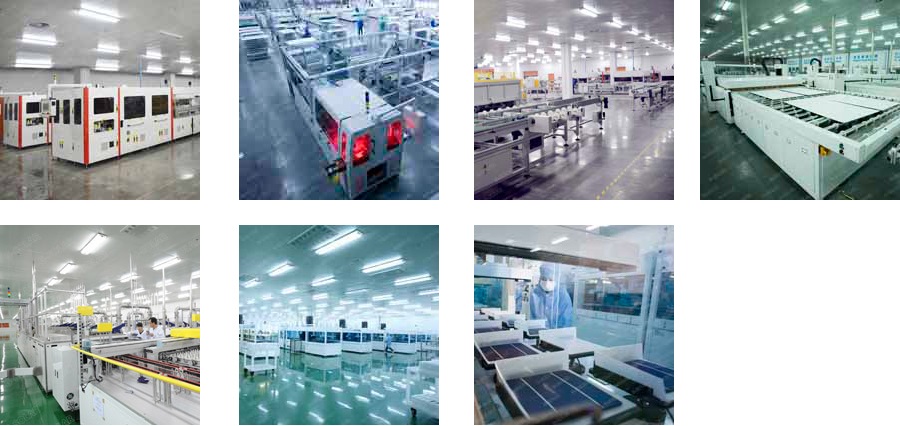

Our Assemble Line
DOWNLOAD: GSPV-255W-270W(156P)60
