MONO 285W-315W(33V)
Series No:GSPV-285W-315W(156M)66M.O.Q:20pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar home system, Solar power plant and Other Solar system
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
||||||||
|
Series Number |
GSPV-285W (156M)66 |
GSPV-290W (156M)66 |
GSPV-295W (156M)66 |
GSPV-300W (156M)66 |
GSPV-305W (156M)66 |
GSPV-310W (156M)66 |
GSPV-315W (156M)66 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
Mono |
|
|
Max power |
285w |
290w |
295w |
300w |
305w |
310w |
315w |
|
|
Power Tolerance |
0~5w |
|||||||
|
Nominal voltage(V) |
34.38 |
34.28 |
34.23 |
34.18 |
34.26 |
34.32 |
34.35 |
|
|
Nominal current(A) |
8.29 |
8.46 |
8.62 |
8.78 |
8.90 |
9.03 |
9.17 |
|
|
Open circuit voltage(V) |
40.5 |
40.21 |
40.32 |
40.29 |
40.25 |
40.21 |
40.25 |
|
|
Short circuit current(A) |
9.15 |
9.31 |
9.46 |
9.58 |
9.69 |
9.75 |
9.98 |
|
|
Size of cell/strips(mm) |
156x156 |
|||||||
|
Number of cells |
66(6x11) |
|||||||
|
Power Of cell |
>4.41w |
>4.48w |
>4.56w |
>4.63w |
>4.72 |
>4.79w |
>4.87w |
|
|
FF(fill factor) % |
76.91 |
77.46 |
77.34 |
77.72 |
78.20 |
79.07 |
78.42 |
|
|
Dimension of solar panel |
1790x990x40 |
|||||||
|
Weight of solar panel(kg) |
20.0 |
|||||||
|

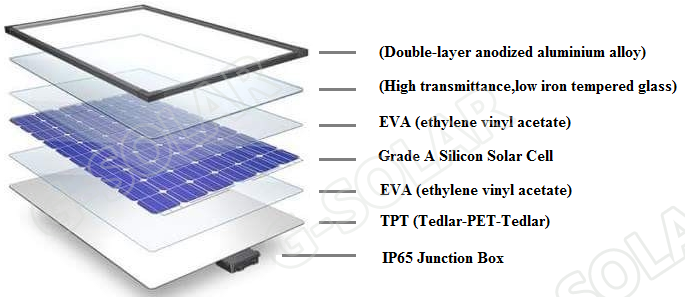

Front Cover |
3.2 mm , High transmittance, low iron tempered glass |
|||||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
|||||||
|
Encapsulate |
EVA (ethylene vinyl acetate) |
|||||||
|
Frame |
Double-layer anodized aluminum alloy |
|||||||
|
Junction Box/connector |
IP65/ MC4 connectors,4.0mm2x900mmcable |
|||||||
|
Max. System Voltage |
1000V DC |
|||||||
|
Operating Temperature |
-40℃～+85℃ |
|||||||
|
Storage Temperature |
-40℃～+85℃ |
|||||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
|||||||
|
Application Class |
Class A |
|||||||
|
NOCT |
48℃± 2℃ |
|||||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
||||||
|
Voc |
-0.340% /℃ |
|||||||
|
Pmpp |
-0.430% /℃ |
|||||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
||||||||
Our Assemble Line
DOWNLOAD: GSPV-285W-315W(156M)66
