POLY 260W-285W(33V)
Series No:GSPV-260W-285W(156P)66M.O.Q:20pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar home system, Solar power plant and Other Solar system
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||||
|
Series Number |
GSPV-260W (156P)66
|
GSPV-265W (156P)66 |
GSPV-270W (156P)66 |
GSPV-275W (156P)66 |
GSPV-280W (156P)66 |
GSPV-285W (156P)66 |
|
|
Cell Type |
Poly |
Poly |
Poly |
Poly |
Poly |
Poly |
|
|
Max power |
260w |
265w |
270w |
275w |
280w |
285w |
|
|
Power Tolerance |
0~5w |
||||||
|
Nominal voltage(V) |
33.85 |
34.05 |
34.09 |
34.13 |
34.18 |
34.25 |
|
|
Nominal current(A) |
7.68 |
7.78 |
7.92 |
8.06 |
8.19 |
8.32 |
|
|
Open circuit voltage(V) |
39.51 |
39.68 |
39.75 |
39.87 |
39.95 |
40.2 |
|
|
Short circuit current(A) |
8.83 |
8.95 |
9.03 |
9.18 |
9.23 |
9.31 |
|
|
Size of cell/strips(mm) |
156x156 |
||||||
|
Number of cells |
66(6x11) |
||||||
|
Power Of cell |
>4.02w |
>4.10w |
>4.17w |
>4.25w |
>4.33w |
>4.41w |
|
|
FF(fill factor) % |
75.52 |
74.62 |
75.22 |
75.13 |
75.93 |
76.14 |
|
|
Dimension of solar panel |
1790x990x40 |
||||||
|
Weight of solar panel(kg) |
20.0 |
||||||
|

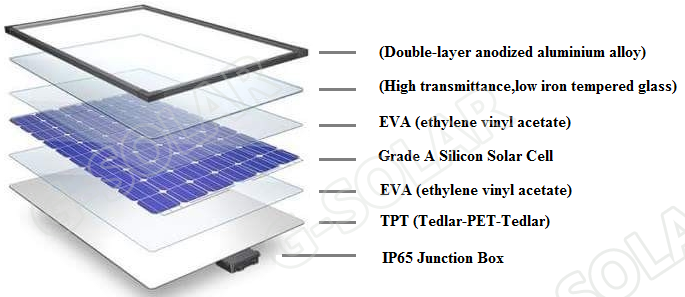

Front Cover |
3.2 mm , High transmittance, low iron tempered glass |
||||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||||
|
Frame |
Double-layer anodized aluminum alloy |
||||||
|
Junction Box/connector |
IP65/ MC4 connectors,4.0mm2x900mmcable |
||||||
|
Max. System Voltage |
1000V DC |
||||||
|
Operating Temperature |
-40℃～+85℃ |
||||||
|
Storage Temperature |
-40℃～+85℃ |
||||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||||
|
Application Class |
Class A |
||||||
|
NOCT |
48℃± 2℃ |
||||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
|||||
|
Voc |
-0.340% /℃ |
||||||
|
Pmpp |
-0.430% /℃ |
||||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||||

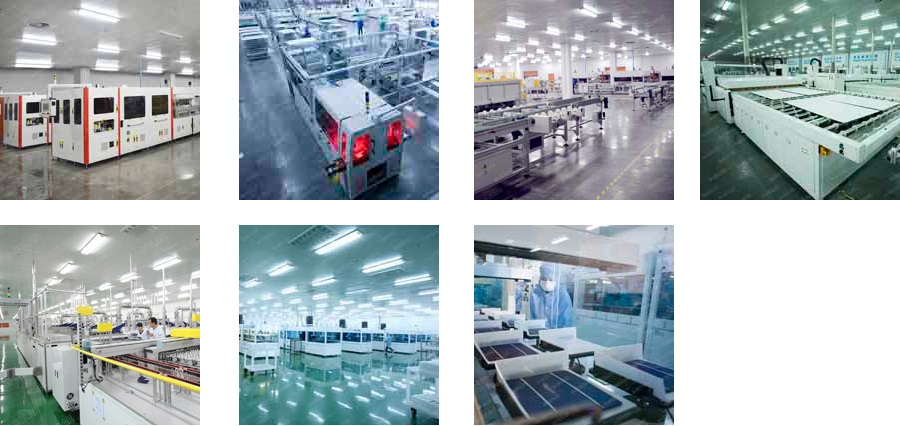

Our Assemble Line
DOWNLOAD: GSPV-260W-285W(156P)66
