Solar Charge Bag
MONO 320W-335W(36V)
Series No:GSPV-320W-335W(156M)72M.O.Q:26pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar home system, Solar power plant and Other Solar system
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
|||||
|
Series Number |
GSPV-320W (156M4)72 |
GSPV-325W (156M4)72 |
GSPV-330W (156M4)72 |
GSPV-335W (156M4)72 |
|
|
Cell Type |
Mono |
Mono |
Mono |
Mono |
|
|
Max power(0~5w) |
320w |
325w |
330w |
335w |
|
|
Nominal voltage(V) |
37.65 |
37.88 |
38.02 |
38.2 |
|
|
Nominal current(A) |
8.50 |
8.58 |
8.68 |
8.77 |
|
|
Open circuit voltage(V) |
45.4 |
45.5 |
45.8 |
46.0 |
|
|
Short circuit current(A) |
9.11 |
9.20 |
9.28 |
9.38 |
|
|
Size of cell/strips(mm) |
156.7x156.7 |
||||
|
Number of cells |
72(6x12) |
||||
|
Power Of cell |
>4.5w |
>4.6w |
>4.6w |
>4.7w |
|
|
FF(fill factor) % |
77.45 |
77.61 |
77.65 |
77.68 |
|
|
Dimension of solar panel |
1956x992x40 |
||||
|
Weight of solar panel(kg) |
23.5 |
||||
|

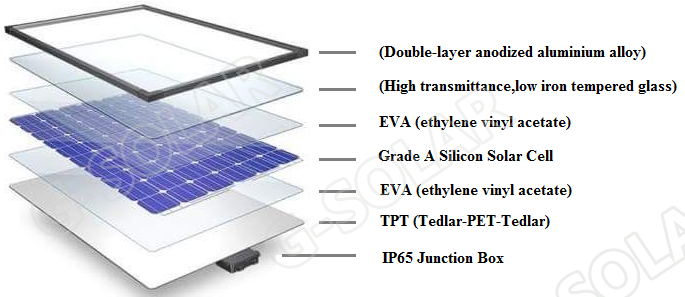

Front Cover |
3.2 mm , High transmittance, low iron tempered glass |
||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
||||
|
Frame |
Double-layer anodized aluminum alloy |
||||
|
Junction Box/connector |
IP65/ MC4 connectors,4.0mm2x900mmcable |
||||
|
Max. System Voltage |
1000V DC |
||||
|
Operating Temperature |
-40℃～+85℃ |
||||
|
Storage Temperature |
-40℃～+85℃ |
||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
||||
|
Application Class |
Class A |
||||
|
NOCT |
48℃± 2℃ |
||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
|||
|
Voc |
-0.340% /℃ |
||||
|
Pmpp |
-0.430% /℃ |
||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
|||||

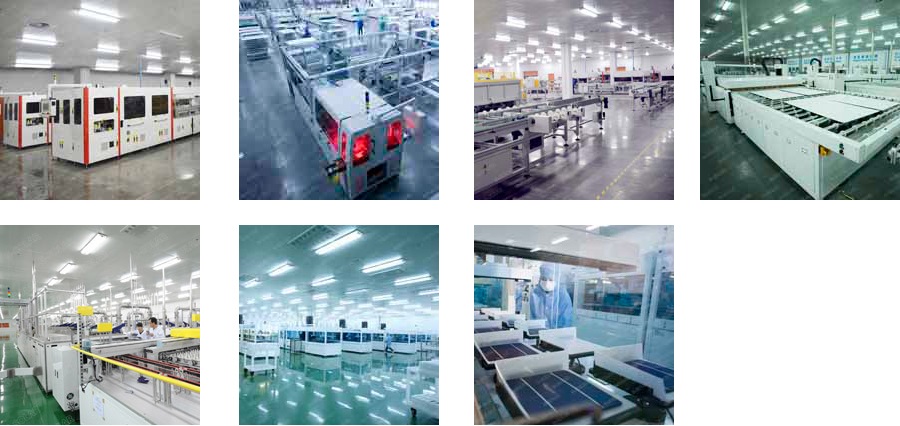

Our Assemble Line
DOWNLOAD: GSPV-320W-335W (156M4)72
