POLY 285W-305W(36V)
Series No:GSPV-285W-305W(156P)72M.O.Q:20pcs
Payment:T/T, L/C, Paypal
Warranty:10years
Features
★ High cell’s efficiency with high quality silicon material for long term output stability and reliability
★ Rigorous quality control to meet highest international standards
★ High transmittance, low iron tempered glass cover with enhanced stiffness and impact resistance
★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions
★ Unique frame design with high mechanical strength for easy installation
★ Advanced encapsulation material provide efficient protection from the severest environment conditions
Applications
★ Solar home system, Solar power plant and Other Solar system
Warranty
★ 10 years limited warranty on material and workmanship
★ 10 years with 90% output, 25years with 80% output
Grade A solar cells made from Grade A solar wafer.
Off-grade solar cells is not acceptable
1, High dark reverse current (No)
2, unvisible breakage (No)
3, used cells(No)
4, visible default(No)
|
Specification sheet |
||||||
|
Series Number |
GSPV-285W (156P)72 |
GSPV-290W (156P)72 |
GSPV-295W (156P)72 |
GSPV-300W (156P)72 |
GSPV-305W (156P)72 |
|
|
Cell Type |
Poly |
Poly |
Poly |
Poly |
Poly |
|
|
Max power |
285w |
290w |
295w |
300w |
305w |
|
|
Power Tolerance |
0~5w |
|||||
|
Nominal voltage(V) |
37.13 |
37.19 |
37.18 |
37.25 |
36.98 |
|
|
Nominal current(A) |
7.68 |
7.80 |
7.93 |
8.05 |
8.25 |
|
|
Open circuit voltage(V) |
45.04 |
45.09 |
45.13 |
45.22 |
45.14 |
|
|
Short circuit current(A) |
8.35 |
8.41 |
8.48 |
8.63 |
8.84 |
|
|
Size of cell/strips(mm) |
156x156 |
|||||
|
Number of cells |
72(6x12) |
|||||
|
Power Of cell |
>4.04w |
>4.11w |
>4.18w |
>4.25w |
>4.32w |
|
|
FF(fill factor) % |
75.78 |
76.47 |
77.08 |
76.87 |
76.43 |
|
|
Dimension of solar panel |
1956x992x40 |
|||||
|
Weight of solar panel(kg) |
23.5 |
|||||
|

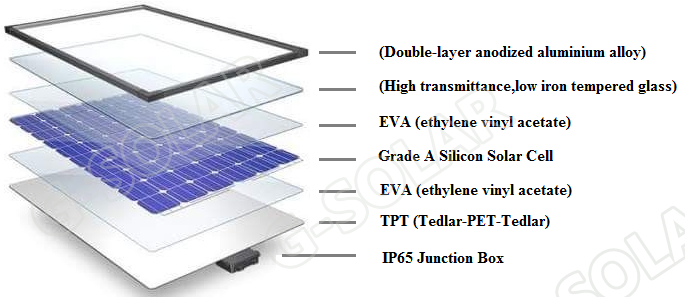

Front Cover |
3.2 mm, High transmittance, low iron tempered glass |
|||||
|
Back Cover |
TPT (Tedlar-PET-Tedlar) |
|||||
|
Encapsulant |
EVA (ethylene vinyl acetate) |
|||||
|
Frame |
Double-layer anodized aluminum alloy |
|||||
|
Junction Box/connector |
IP65/ MC4 connectors,4.0mm2x900mmcable |
|||||
|
Max. System Voltage |
1000V DC |
|||||
|
Operating Temperature |
-40℃～+85℃ |
|||||
|
Storage Temperature |
-40℃～+85℃ |
|||||
|
Max. Wind /Snow Load |
2400Pa / 5400Pa |
|||||
|
Application Class |
Class A |
|||||
|
NOCT |
48℃± 2℃ |
|||||
|
Temperature co-efficient |
Isc |
+0.049% /℃ |
||||
|
Voc |
-0.340% /℃ |
|||||
|
Pmpp |
-0.430% /℃ |
|||||
|
STC: Irradiance 1000W/M2, Module temperature25℃, AM=1.5 |
||||||
Our Assemble Line
DOWNLOAD: GSPV-285W-305W(156P)72
