145w-155w Poly

Features

★ High cell’s efficiency with high quality silicon material for long term output stability and reliability

★ Rigorous quality control to meet highest international standards

★ High transmittance,low iron tempered glass cover with enhanced stiffness and impact resistance

★ Outstanding electrical performance under high temperature and low irradiance ,cloudy weather conditions

★ Advanced encapsulation material provide efficient protection from the severest environment conditions

★ 2EL tests before/after laminated, 1 Flash test for finished panel

Applications

★ Solar roof system, Farm.

Warranty

★ 10 years limited warranty on material and workmanship

★ 10 years with 90% output, 20years with 80% output

Series Number	GSBIPVH-145W(156P)36	GSBIPVH-150W(156P)36	GSBIPVH-155W(156P)36
Cell Type	Polycrystalline
Max power	145w	150w	155w
Power Tolerance	0~5w
Light transmittance	30%
Nominal Voltage(V)	18.11	18.13	18.15
Nominal Current(A)	8.01	8.27	8.54
Open circuit voltage(V)	22.13	22.15	22.35
Short circuit current(A)	8.68	8.85	8.95
Size of cell/strip(mm)	156x156
Number of cell/strip	36(4x9)
Power of cell	>4.4w	>4.5w	>4.6w
FF(fill factor)%	75.48	76.51	77.48
NOCT	45℃±2℃
Temperature Co-efficient	Power	+0.049% /℃
	Voltage	-0.340% /℃
	Current	-0.430% /℃
STC :Irradiance 1000w/m², Module temperature25℃,AM=1.5

Solar cell	Polycrystalline solar cell
Front Cover	4mm Super clear low iron wove tempered glass
Back Cover	4mm tempered glass
Encapsulate	PVB
Insulated glass	4mm Low-E
Gap	12A
Junction Box	IP67
Cables / Connectors	MC4 connectors,4mm²x900mmCable
Dimensions(mm)	1100x1100x25
Weight(kg)	37kgs
Packing	35pcs/wooden case
Packing	500pcs/40ftcontainer

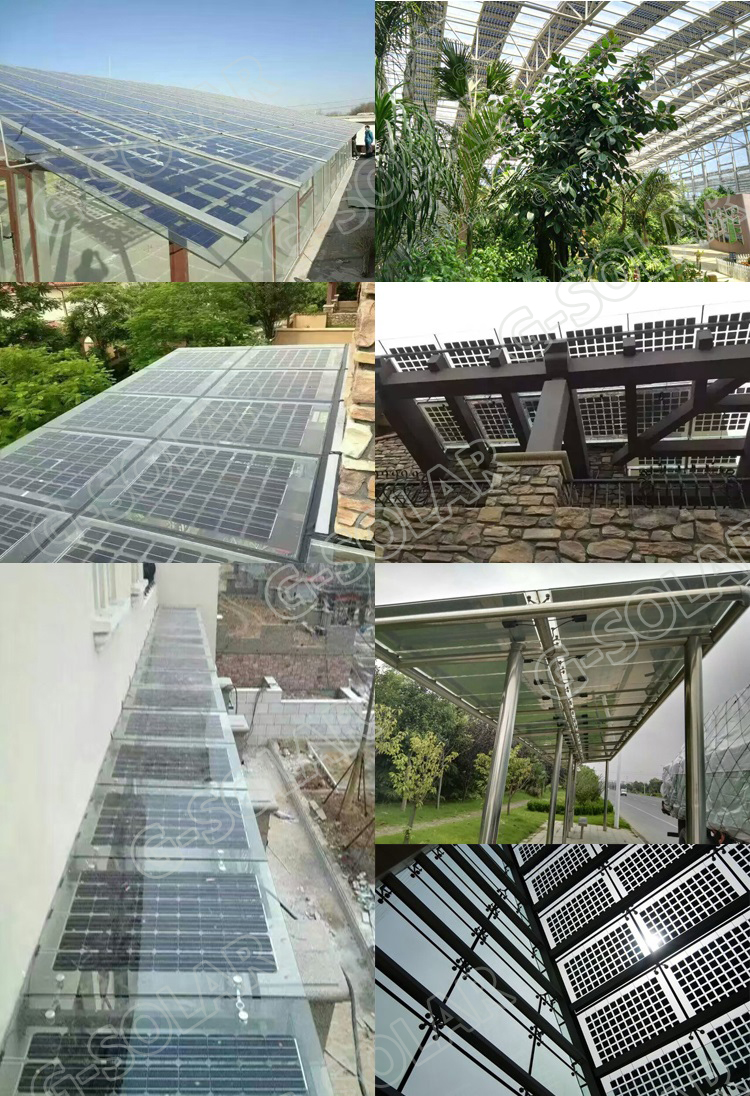

Application

Download:GSBIPVH-145W-155w(156P)36
