Solar Charge Bag
BCD-268L
Series No:GSH-BCD268M.O.Q:100sets
Payment:T/T, L/C, Paypal
Warranty:1years
Features
★ >65mmcyclopentane foam
★ Excellent performance with high efficiency compressor
★ Fast and deep freezing
★ Low noisy design
★ Grade A solar panel with 25years work life
★ Deep recycle GEL maintaince free battery
★ Charger controller with multiply protection functions
★ Several work modes
★ Wide climate range(N/ST/T)
Warranty
★ 1year for battery
★ 5years for compressor
★ 5years for solar charger controller
★ 10years for solar panel
|
Specification |
|
|
|
|
|
Type |
Double Door |
|
Shell Material |
Stainless steel |
|
Handle |
Recessed |
|
Foam vesicant |
C5H10/C-pentane |
|
Capacity |
268L |
|
Foam thickness |
>65mm |
|
Fridge Capacity |
216L(Bottom) |
|
Evaporator |
Bundy Tube |
|
Freezer Capacity |
52L(Upper) |
|
Applicable Climate |
N/T/ST |
|
Nominal Voltage |
12V/24V DC |
|
Certification |
CE POVC |
|
Power consumption |
1200wh/24hours |
|
Warranty |
1year |
|
Refrigerant |
R134a |
|
|
|
|
Temperature range |
0~10℃for frigde |
|
Peak Irriadition |
4kwh/day/M2 |
|
≤-8℃ for freezer |
|
Keep working |
2 cloudy days |
|
|
Defrost |
Manual |
|
Power consumption |
1200wh |
|
|
|
|
Power generated |
1296wh |
|
Dimension(mm) |
550x575x1620 |
|
Eff. Of system |
0.9 |
|
Carton Size(mm) |
570x605x1690 |
|
DOD of battery |
0.7 |
|
N.W/G.W(kg) |
45/50 |
|
|
|
|
Packing |
1set / Carton |
|
|
|
|
106sets/ 40HQ |
|
|
|
|
|
|
|
|
Solar panel |
90Wx4,POLY |
|
Optional parts |
AC/DC adaptor |
|
Charge controller |
24V/20A |
|
|
|
Battery |
150Ahx2, GEL |
|
|
Hybrid solar charge |
|
Refrigerator |
BCD-268 |
|
Optional parts
Working Mode
Application
Download

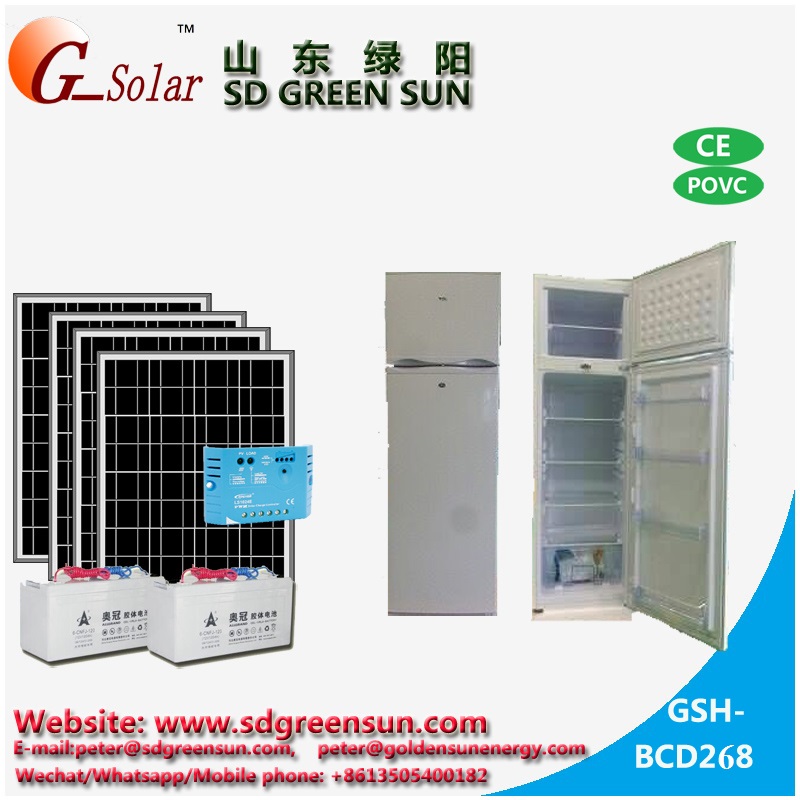

Refrigerator: BCD-268L
Solar panel: GSPV-90W(156P)36
Charge controller: EPEVER(LS2024B)

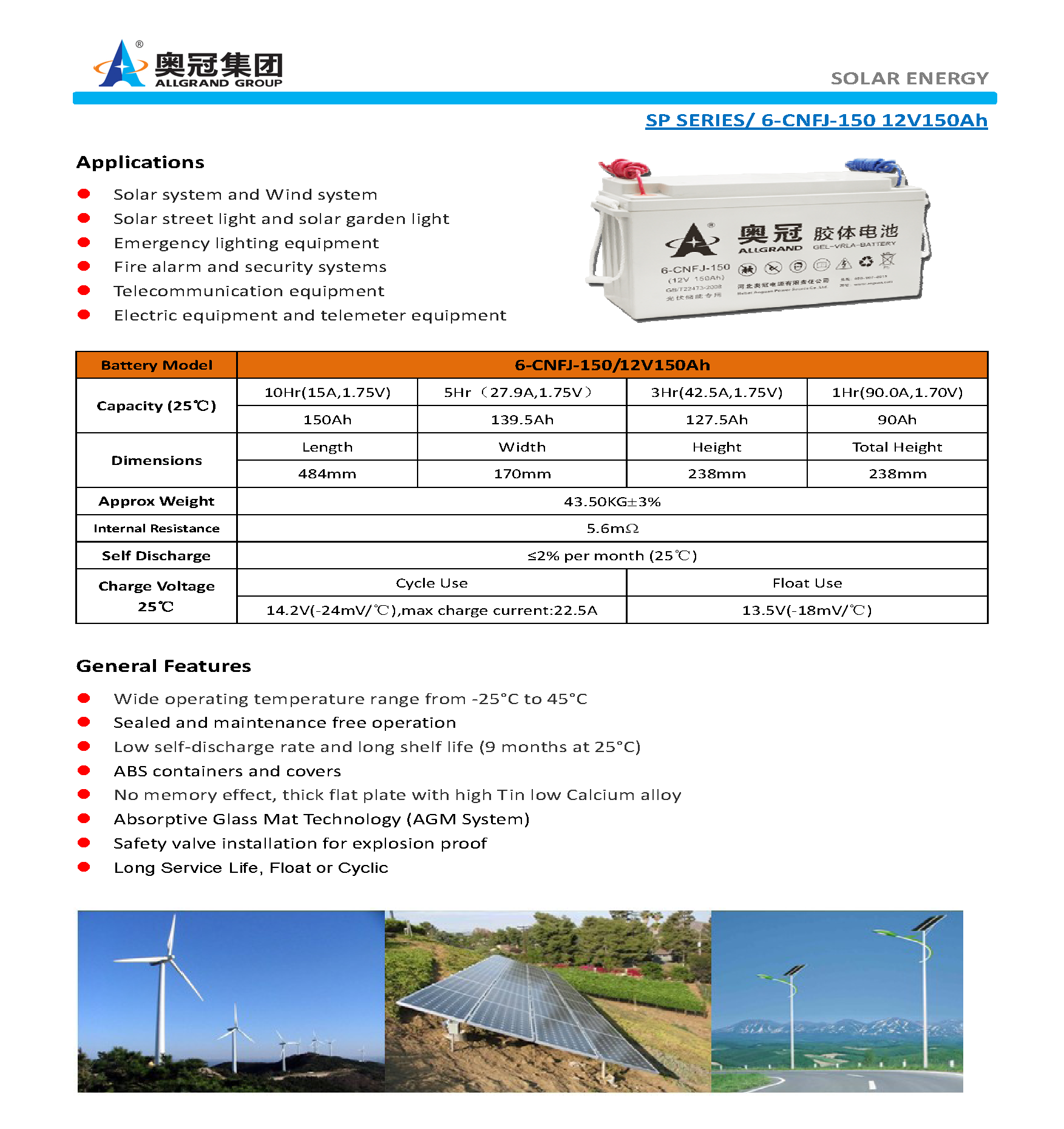

Battery: 6-CNFJ-150
