Solar Charge Bag
BD/BC 108L
Series No:GSH-BD/BC108M.O.Q:50sets
Payment:T/T, L/C, Paypal
Warranty:1years
Features
★ >65mmcyclopentane foam
★ Excellent performance with high efficiency compressor
★ Fast and deep freezing
★ Low noisy design
★ Grade A solar panel with 25years work life
★ Deep recycle GEL maintaince free battery
★ Charger controller with multiply protection functions
★ Several work modes
★ Wide climate range(N/ST/T)
Warranty
★ 1year for battery
★ 5years for compressor
★ 5years for solar charger controller
★ 10years for solar panel
|
Specification |
|
|
|
|
|
Model No. |
BD/BC-108 |
|
Shell Material |
Stainless steel |
|
Capacity |
108L |
|
Foam vesicant |
C5H10/C-pentane |
|
NominalPower |
70W |
|
Foam thickness |
>65mm |
|
Nominal Voltage |
24V DC |
|
Evaporator |
Bundy Tube |
|
Power consumption |
840wh/24hours |
|
Applicable Climate |
N/T/ST |
|
Refrigerant |
R134a |
|
Certification |
CE POVC |
|
Temperature range |
≤-18℃ |
|
Warranty |
1year |
|
Temperature Controlle |
LED Display,Digital control |
|
|
|
|
Defrost |
Manual |
|
Peak Irriadition |
4kwh/day/M2 |
|
|
|
|
Keep working |
2 cloudy days |
|
Dimension(mm) |
580x555x850 |
|
Power consumption |
840wh |
|
Carton Size(mm) |
617x577x882 |
|
Power generated |
864wh |
|
N.W/G.W(kg) |
30/33 |
|
Eff. Of system |
0.9 |
|
Packing |
1set / Carton |
|
DOD of battery |
0.7 |
|
228sets/ 40HQ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Solar panel |
120W,Poly 2pcs |
|
Optional parts |
AC/DC adaptor |
|
Charge controller |
24V/20A |
|
|
|
Battery |
100Ah, GEL,2pcs |
|
|
Hybrid Solar Charge |
|
Refrigerator |
BD/BC-108 |
|
Optional parts
Application
Working Mode
Download

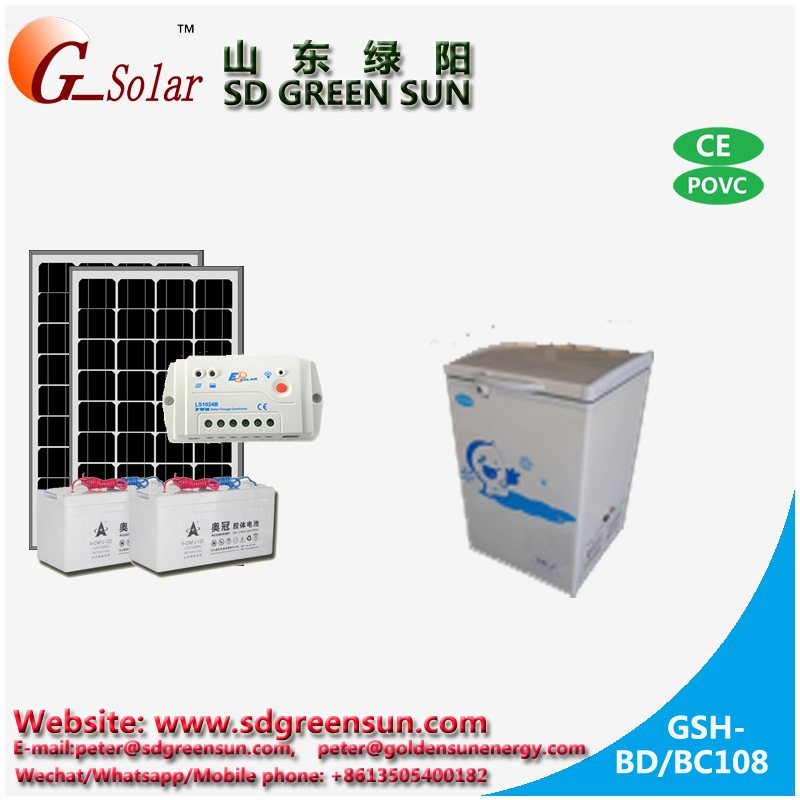

Freezer: BD/BC-108L

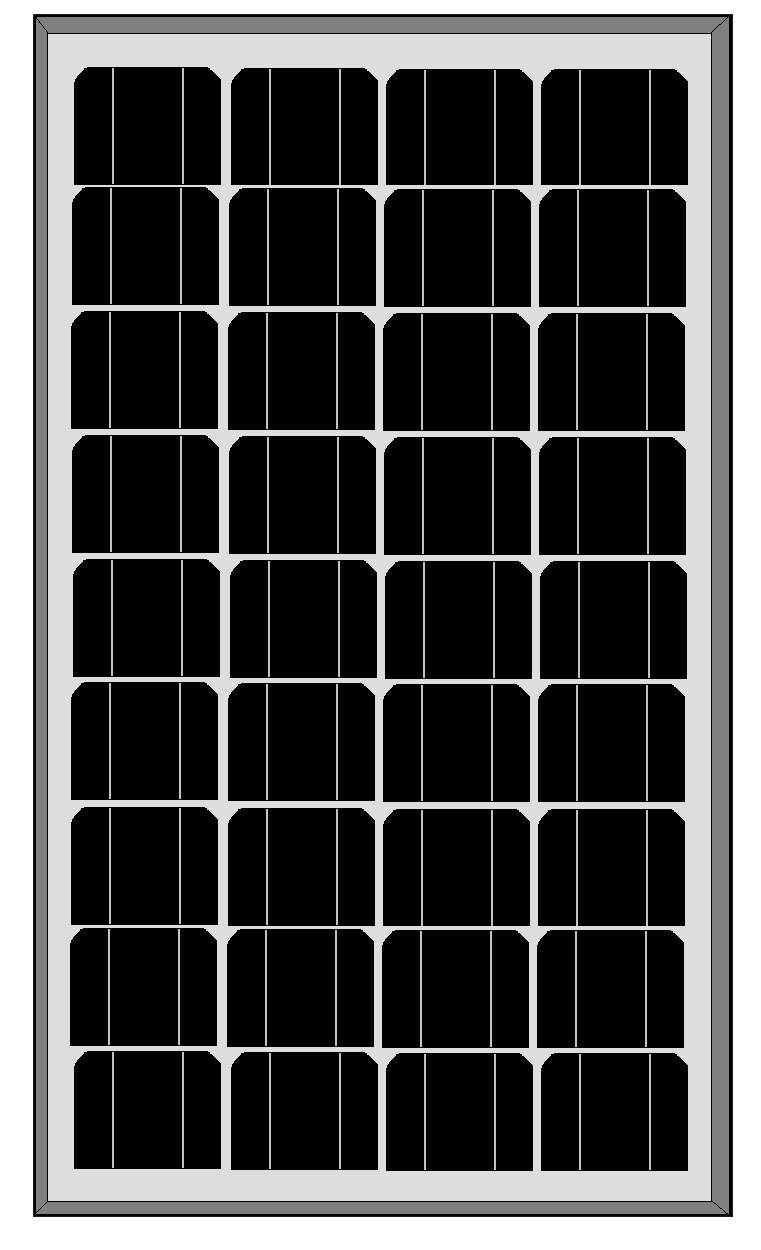

Solar panel: GSPV-120W(156M)36
Charge controller: EPEVER(LS2024B)

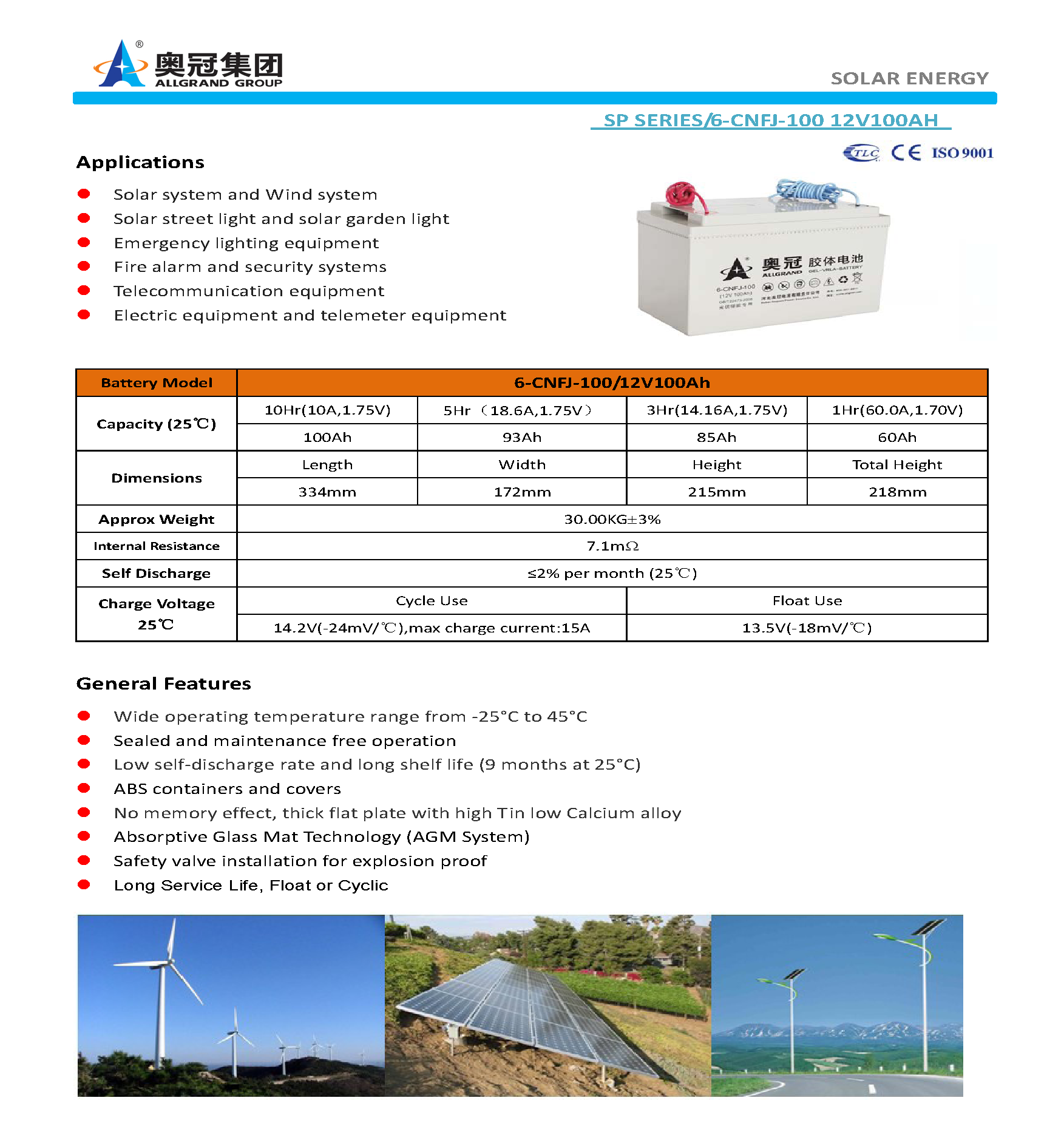

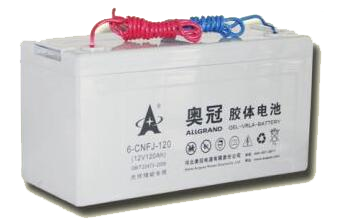

Battery: 6-CNFJ-100
